Storing partition-ashtray front for BMW 5 Series E28 528e (1987)

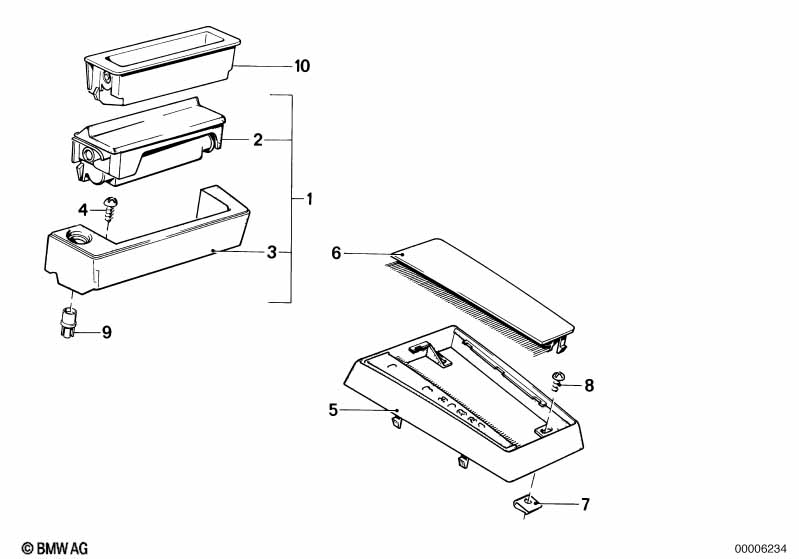

This Storing partition-ashtray front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Ashtray front | 1 | 09/1982 | 51161911696 | $46.57 | ENDED | Shop at ECS Tuning | |||
| 03 | Frame ashtray front | 1 | 04/1983 | 51161911697 | $33.36 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Cover | NUTRIA | 1 | 09/1984 | 51161919283 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | PINIENGRUEN | 1 | 09/1984 | 51161919284 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | PERLBEIGE | 1 | 09/1984 | 51161919285 | $74.83 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover | PACIFIC | 1 | 09/1984 | 51161919286 | $113.87 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover | LAMA | 1 | 09/1984 | 51161919287 | $4.05 | ENDED | Shop at ECS Tuning | ||
| 09 | Bulb socket | 1 | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
| 10 | Storing partition | 1 | 72601942786 | $40.05 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
