Storing partition cover for BMW 5 Series E28 524d (1987)

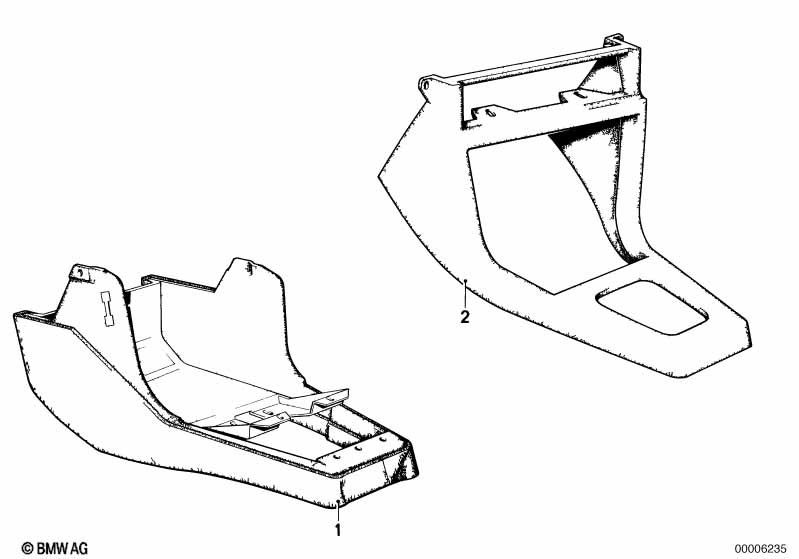

This Storing partition cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Storing partition | ANTHRAZIT | 1 | 09/1982 | 51161920182 | ENDED | Shop at ECS Tuning | |||
| 01 | Storing partition | PACIFIC | 1 | 09/1982 | 51161920183 | ENDED | Shop at ECS Tuning | |||
| 01 | Storing partition | NUTRIA | 1 | 09/1982 | 51161920184 | ENDED | Shop at ECS Tuning | |||
| 01 | Storing partition | PERLBEIGE | 1 | 09/1982 | 51161920185 | ENDED | Shop at ECS Tuning | |||
| 01 | Storing partition | PINIENGRUEN | 1 | 09/1982 | 51161920186 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | ANTHRAZIT | 1 | 51161884561 | $203.11 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | NUTRIA | 1 | 09/1982 | 51161912065 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | PERLBEIGE | 1 | 09/1982 | 51161912066 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | PACIFIC | 1 | 09/1984 | 51161929037 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | PINIENGRUEN | 1 | 09/1984 | 51161929038 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | LAMA | 1 | 09/1984 | 51161935706 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
