Storing partition/air conditioning for BMW 3 Series E21 320i (1978)

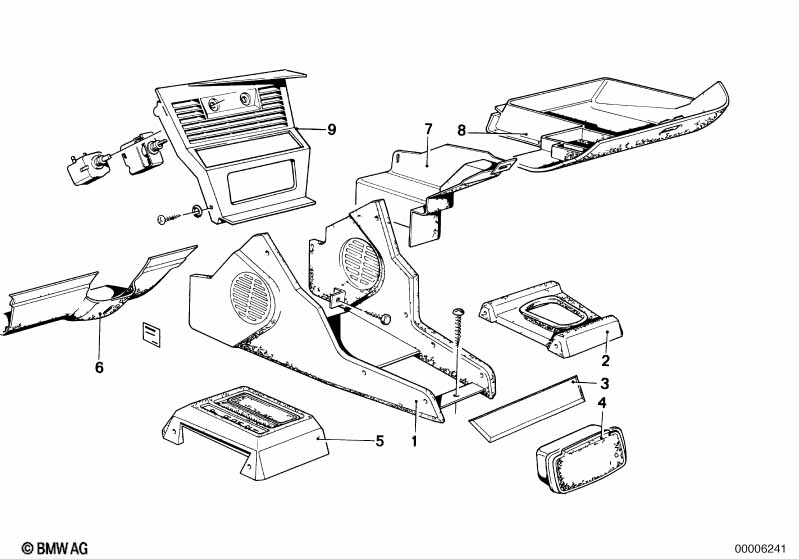

This Storing partition/air conditioning technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO AIR CONDITION | |||||||||
| 01 | Storing partition | 1 | 51161832672 | $290.16 | ENDED | Shop at ECS Tuning | ||||
| 02 | Frame gear lever console | 1 | 04/1981 | 51161847021 | $33.56 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 51161836995 | $16.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ashtray front | 1 | 51161848880 | $50.95 | Shop at ECS Tuning | |||||
| 06 | Trim panel lower right | 1 | 51451867726 | ENDED | Shop at ECS Tuning | |||||
| 08 | Glove box | 1 | 08/1979 | 51161873083 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Plug terminal for hand lamp | 1 | 08/1979 | 61131366929 | $3.82 | ENDED | Shop at ECS Tuning | |||
| -- | Catch | 1 | 08/1979 | 51161848866 | $1.96 | Shop at ECS Tuning | ||||
| -- | Locking kit | 1 | 08/1979 | 51161848873 | $36.51 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 08/1979 | 51161835799 | $51.89 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
