Center console for BMW 6 Series E24 M6 (1988)

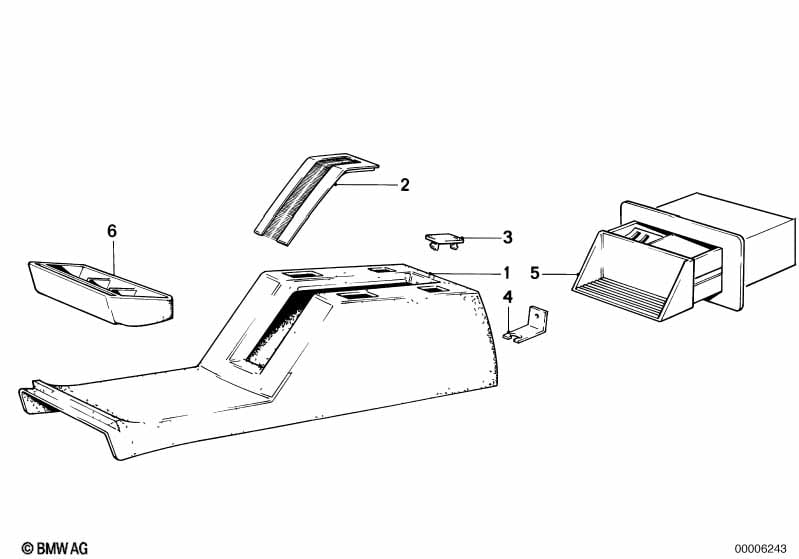

This Center console technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | ANTHRAZIT | 1 | 09/1982 | 51161902261 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | SILBER | 1 | 06/1987 | 51161967986 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | INDIGO | 1 | 06/1987 | 51161967987 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | HAVANNA | 1 | 06/1987 | 51161967988 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | NATUR | 1 | 06/1987 | 51161976881 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | CARDINALROT | 1 | 06/1987 | 51161976882 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat, electrically adjustable, front |
=Yes |
|||||||||
| 01 | Console | ANTHRAZIT | 1 | 09/1982 | 51161909921 | $345.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | PACIFIC | 1 | 09/1982 | 51161909922 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | NUTRIA | 1 | 09/1982 | 51161909923 | $828.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | PERLBEIGE | 1 | 09/1982 | 51161909924 | $426.36 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | PINIENGRUEN | 1 | 09/1982 | 51161909925 | $148.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | LAMA | 1 | 09/1982 | 51161919238 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | SILBER | 1 | 06/1987 | 51161971425 | $148.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | INDIGO | 1 | 06/1987 | 51161971426 | $148.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | HAVANNA | 1 | 06/1987 | 51161971427 | $148.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | NATUR | 1 | 06/1987 | 51161971429 | $266.72 | ENDED | Shop at ECS Tuning | ||
| 01 | Console | CARDINALROT | 1 | 06/1987 | 51161971431 | $266.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with High Line |
=Yes |
|||||||||
| 01 | Console | LOTOSWEISS | 1 | 51161968035 | $834.21 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | NATUR | 1 | 51161968036 | ENDED | Shop at ECS Tuning | ||||
| 01 | Console | SILBER | 1 | 51161968037 | ENDED | Shop at ECS Tuning | ||||
| 01 | Console | SCHWARZ | 1 | 51168106725 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with High Line and Seat, electrically adjustable, front |
=Yes =Yes |
|||||||||
| 01 | Console | LOTUSWEISS | 1 | 51161965445 | $572.56 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | NATUR | 1 | 51161965446 | $730.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | SILBER | 1 | 51161965447 | $730.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | ANTHRAZIT | 1 | 09/1982 | 51161884770 | $52.48 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | NATUR | 1 | 06/1987 | 51161971413 | $44.08 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | CARDINALROT | 1 | 06/1987 | 51161971415 | $44.08 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | SCHWARZ | 1 | 06/1987 | 51161971432 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SILBER | 1 | 06/1987 | 51161971433 | $30.97 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | INDIGO | 1 | 06/1987 | 51161971434 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | HAVANNA | 1 | 06/1987 | 51161971435 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | ANTILOPE | 1 | 06/1987 | 51161971436 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat, electrically adjustable, front |
=Yes |
|||||||||
| 02 | Cover | ANTHRAZIT | 1 | 09/1982 | 51161909914 | $48.33 | ENDED | Shop at ECS Tuning | ||
| For vehicles with High Line and Seat, electrically adjustable, front |
=Yes =Yes |
|||||||||
| 02 | Cover | LOTOSWEISS | 1 | 51161965457 | $257.80 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | NATUR | 1 | 51161965458 | $255.61 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SILBER | 1 | 51161965459 | $353.77 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SCHWARZ | 1 | 51168106726 | $257.80 | Shop at ECS Tuning | ||||
| 03 | Plug | ANTHRAZIT | 1 | 09/1982 | 51161883902 | $8.86 | ENDED | Shop at ECS Tuning | ||
| 03 | Plug | SILBER | 1 | 06/1987 | 51161971417 | $1.40 | ENDED | Shop at ECS Tuning | ||
| 03 | Plug | INDIGO | 1 | 06/1987 | 51161971418 | $1.40 | ENDED | Shop at ECS Tuning | ||
| 03 | Plug | HAVANNA | 1 | 06/1987 | 51161971419 | $1.40 | ENDED | Shop at ECS Tuning | ||
| 03 | Plug | NATUR | 1 | 06/1987 | 51161971421 | $1.40 | ENDED | Shop at ECS Tuning | ||
| 03 | Plug | CARDINALROT | 1 | 06/1987 | 51161971423 | $1.40 | ENDED | Shop at ECS Tuning | ||
| For vehicles with High Line |
=Yes |
|||||||||
| 05 | Ashtray rear | LOTOSWEISS | 1 | 51161968485 | $47.99 | ENDED | Shop at ECS Tuning | |||
| 05 | Ashtray rear | NATUR | 1 | 51161968486 | $31.02 | ENDED | Shop at ECS Tuning | |||
| 05 | Ashtray rear | SILBER | 1 | 51161968487 | $47.99 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
