Center console for BMW 3 Series E30 325i (1989)

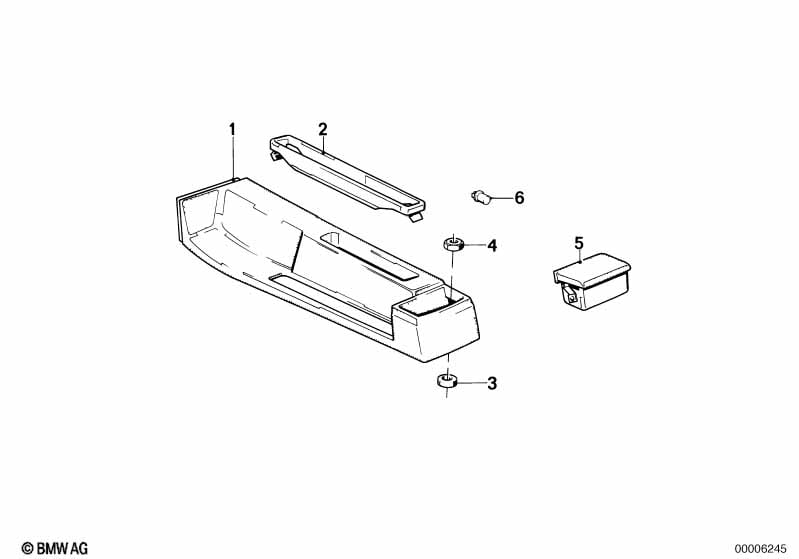

This Center console technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | ANTHRAZIT | 1 | 51161884246 | $60.57 | Shop at ECS Tuning | ||||
| 01 | Console center with cutout for cassette | ANTHRAZIT | 1 | 51161913843 | $60.57 | ENDED, +core | Shop at ECS Tuning | |||
| ONLY APPLIES TO EDITION | ||||||||||
| 01 | Console | ANTHRAZIT | 1 | 51161884246 | $60.57 | Shop at ECS Tuning | ||||
| 01 | Console center with cutout for cassette | ANTHRAZIT | 1 | 51161913843 | $60.57 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Console | SILBER | 1 | 51168129221 | $64.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | INDIGO | 1 | 51168129222 | $80.63 | ENDED | Shop at ECS Tuning | |||
| 01 | Console center with cutout for cassette | SILBER | 1 | 51168129418 | $73.94 | ENDED | Shop at ECS Tuning | |||
| 01 | Console center with cutout for cassette | INDIGO | 1 | 51168129419 | $62.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Spacer | 1 | 51161943121 | $0.48 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Ashtray rear | ANTHRAZIT | 1 | 51161904809 | $221.12 | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 1 | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Center console?
- This technical diagram illustrates the Center console within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Console (Part #51161884246).
- Which models use the hardware listed in this Center console?
- The hardware and components featured in the Center console are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Console (51161884246) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Center console assembly?
- Each item in the Center console corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Console by locating its position on the schematic, which then links to the official BMW part number 51161884246 for the Vehicle trim section.
