Rear mounting parts of center console for BMW 7 Series E23 733i (1984)

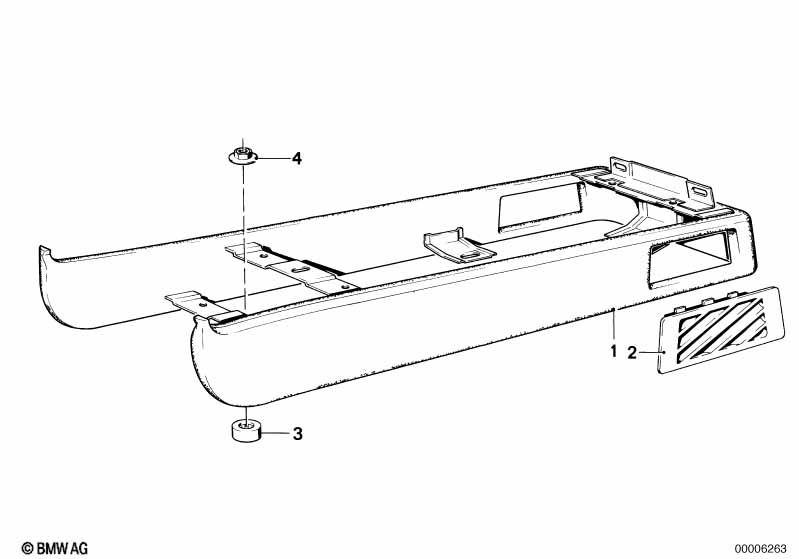

This Rear mounting parts of center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console carrier | NUTRIA | 1 | 09/1982 | 51161911557 | $169.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Console carrier | PERLBEIGE | 1 | 09/1982 | 51161911558 | $169.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Console carrier | ANTHRAZIT | 1 | 09/1982 | 51161917534 | ENDED | Shop at ECS Tuning | |||
| 01 | Console carrier | PACIFIC | 1 | 09/1982 | 51161917535 | $169.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Console carrier | PINIENGRUEN | 1 | 09/1982 | 51161917536 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering left | 1 | 09/1979 | 51161856957 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering right | 1 | 09/1979 | 51161856958 | $5.17 | ENDED | Shop at ECS Tuning | |||
| 03 | Spacer | 2 | 09/1979 | 34321108306 | $0.61 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6 | 2 | 09/1979 | 07147134319 | $1.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
