Center console for BMW 7 Series E23 728 (1978)

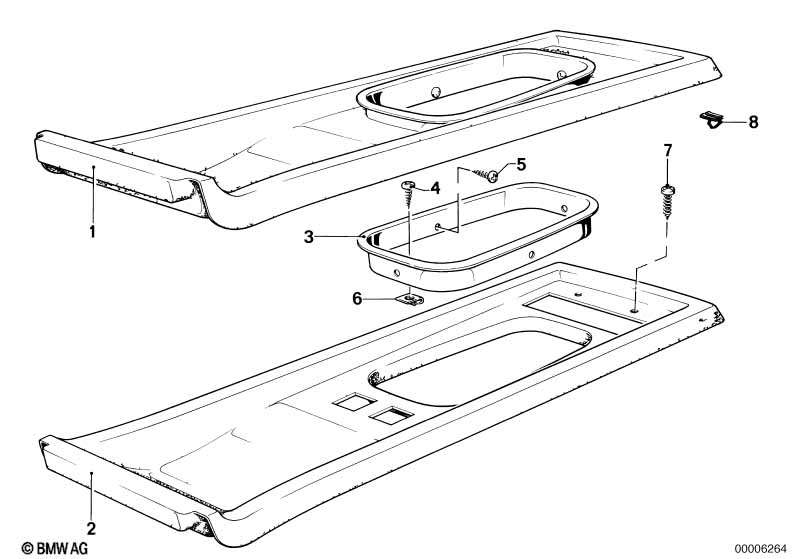

This Center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | HELLGRAU | 1 | 08/1979 | 51161854190 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | NYLONBRAUN | 1 | 08/1979 | 51161854191 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | MARINEBLAU | 1 | 08/1979 | 51161854192 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | ANTHRAZIT | 1 | 08/1979 | 51161854193 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | FARNGRUEN | 1 | 08/1979 | 51161854194 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | BEIGE | 1 | 08/1979 | 51161854196 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | VELOURSROT | 1 | 08/1979 | 51161854197 | ENDED | Shop at ECS Tuning | |||
| 03 | Supporting ring | 1 | 08/1979 | 51161849602 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X13 | 1 | 08/1979 | 07119906748 | $0.18 | Shop at ECS Tuning | |||
| 05 | Sheet metal screw | 3,5X9,5 | 4 | 08/1979 | 07119904455 | $2.45 | Shop at ECS Tuning | |||
| 06 | Body nut | ST4,2-1-ZNS3 | 1 | 08/1979 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,2X25 | 2 | 08/1979 | 07119907796 | $0.18 | Shop at ECS Tuning | |||
| 08 | Clamp | 2 | 08/1979 | 51451836010 | $0.34 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
