Center console for BMW 7 Series E23 735i (1985)

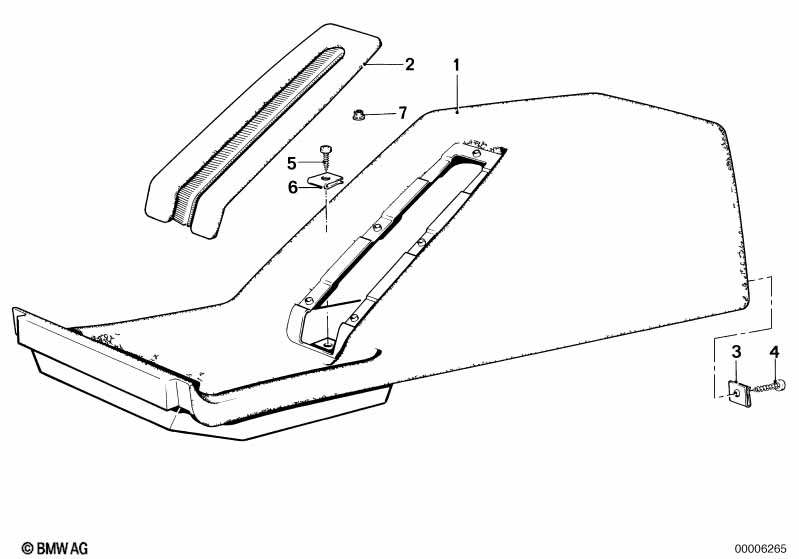

This Center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center console | ANTHRAZIT | 1 | 10/1980 | 51161874036 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | NUTRIA | 1 | 01/1983 | 51161911563 | $347.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Center console | PERLBEIGE | 1 | 01/1983 | 51161911564 | $347.08 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Seat, electrically adjustable, front |
=Yes |
|||||||||
| 01 | Center console | ANTHRAZIT | 1 | 09/1981 | 51161886996 | $488.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Center console | NUTRIA | 1 | 01/1983 | 51161907933 | $488.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Center console | PERLBEIGE | 1 | 01/1983 | 51161907934 | $488.81 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | ANTHRAZIT | 1 | 10/1980 | 51161874083 | $104.30 | Shop at ECS Tuning | |||
| 02 | Cover | NUTRIA | 1 | 01/1983 | 51161911565 | $100.21 | Shop at ECS Tuning | |||
| 02 | Cover | PERLBEIGE | 1 | 01/1983 | 51161911566 | $100.21 | Shop at ECS Tuning | |||
| 03 | Body nut | B3,9 | 2 | 10/1980 | 51131914097 | $1.03 | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST3,9X16 | 2 | 10/1980 | 07119906745 | $0.29 | ENDED | Shop at ECS Tuning | ||
| 05 | Screw | 1 | 10/1980 | 07119904170 | $0.17 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,2-1-ZNS3 | 1 | 10/1980 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 07 | Grommet | 3 | 10/1980 | 51161839447 | $0.45 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
