Storing part./moulding radio cut-out for BMW 6 Series E24 635CSi (1989)

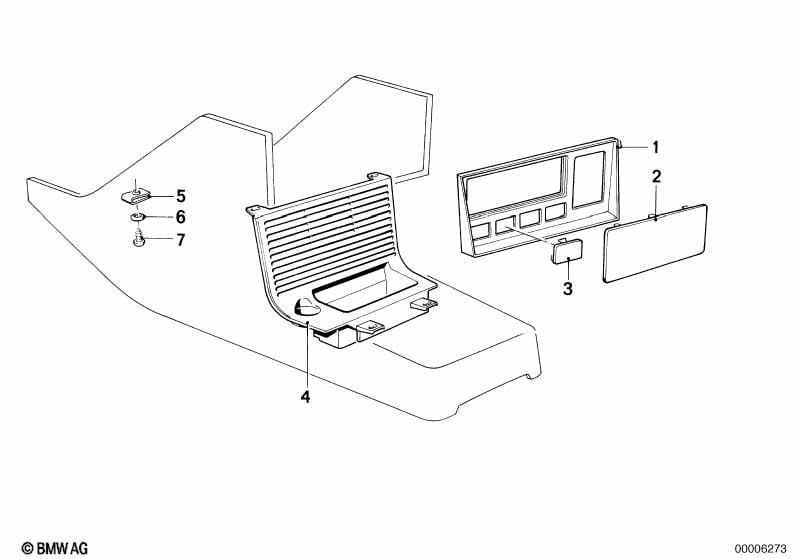

This Storing part./moulding radio cut-out technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding radio cut-out | 1 | 09/1982 | 51161883811 | $60.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 09/1982 | 51161883812 | $8.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Plug | 4 | 09/1982 | 64111368498 | $7.03 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 09/1982 | 51161884012 | $37.44 | ENDED | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,2-1-ZNS3 | 2 | 09/1982 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 06 | Hollow washer | 2 | 09/1982 | 51451804974 | $2.62 | Shop at ECS Tuning | ||||
| 07 | Recessed oval head sheet-metal screw | ST4,2X19 | 2 | 09/1982 | 07119902468 | $0.11 | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 09/1982 | 07119907939 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Storing part./moulding radio cut-out?
- This technical diagram illustrates the Storing part./moulding radio cut-out within the Vehicle trim group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Moulding radio cut-out (Part #51161883811).
- Which models use the hardware listed in this Storing part./moulding radio cut-out?
- The hardware and components featured in the Storing part./moulding radio cut-out are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Moulding radio cut-out (51161883811) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Storing part./moulding radio cut-out assembly?
- Each item in the Storing part./moulding radio cut-out corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Moulding radio cut-out by locating its position on the schematic, which then links to the official BMW part number 51161883811 for the Vehicle trim section.
