Telephone console for BMW 5 Series E28 M535i (1987)

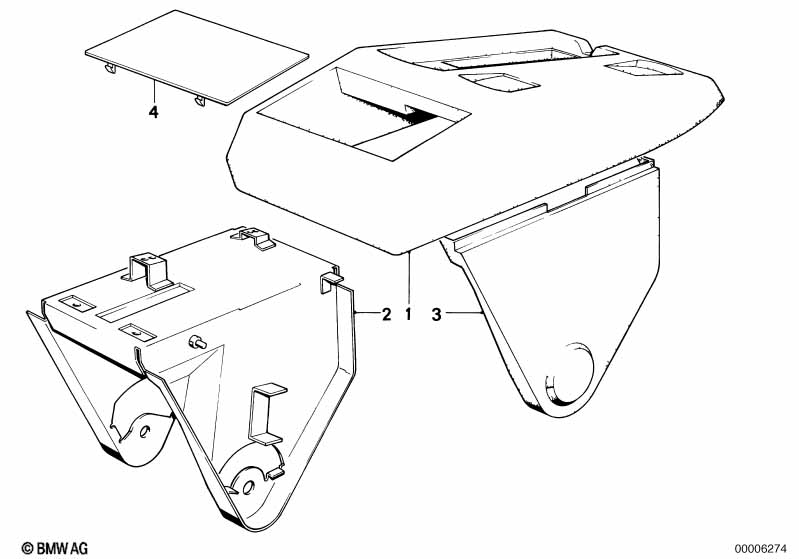

This Telephone console technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CARTELEPHONE ADJUSTABLE | ||||||||||
| 01 | Telephone console | PACIFIC | 1 | 51161920961 | ENDED | Shop at ECS Tuning | ||||
| 01 | Telephone console | ANTHRAZIT | 1 | 09/1984 | 51161917931 | $455.33 | ENDED | Shop at ECS Tuning | ||
| 01 | Telephone console | NUTRIA | 1 | 09/1984 | 51161920962 | ENDED | Shop at ECS Tuning | |||
| 01 | Telephone console | PERLBEIGE | 1 | 09/1984 | 51161920963 | ENDED | Shop at ECS Tuning | |||
| 01 | Telephone console | LAMA | 1 | 09/1984 | 51161935765 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | PACIFIC | 1 | 51161920967 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering right | PACIFIC | 1 | 51161920968 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering left | ANTHRAZIT | 1 | 09/1984 | 51161917949 | $91.79 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering right | ANTHRAZIT | 1 | 09/1984 | 51161917950 | $91.79 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering left | NUTRIA | 1 | 09/1984 | 51161920969 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering right | NUTRIA | 1 | 09/1984 | 51161920970 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | PERLBEIGE | 1 | 09/1984 | 51161920971 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering right | PERLBEIGE | 1 | 09/1984 | 51161920972 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | LAMA | 1 | 09/1984 | 51161935767 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering right | LAMA | 1 | 09/1984 | 51161935768 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO C-SYSTEM | ||||||||||
| 04 | Cover | ANTHRAZIT | 1 | 51161972895 | $14.51 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | PACIFIC | 1 | 51161972896 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | NUTRIA | 1 | 51161972897 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | PERLBEIGE | 1 | 51161972898 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | PINIENGRUEN | 1 | 51161972899 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | LAMA | 1 | 51161972900 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Telephone console?
- This technical diagram illustrates the Telephone console within the Vehicle trim group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Telephone console (Part #51161920961).
- Which models use the hardware listed in this Telephone console?
- The hardware and components featured in the Telephone console are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Telephone console (51161920961) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Telephone console assembly?
- Each item in the Telephone console corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Telephone console by locating its position on the schematic, which then links to the official BMW part number 51161920961 for the Vehicle trim section.
