Sun visor for BMW 6 Series E24 635CSi (1989)

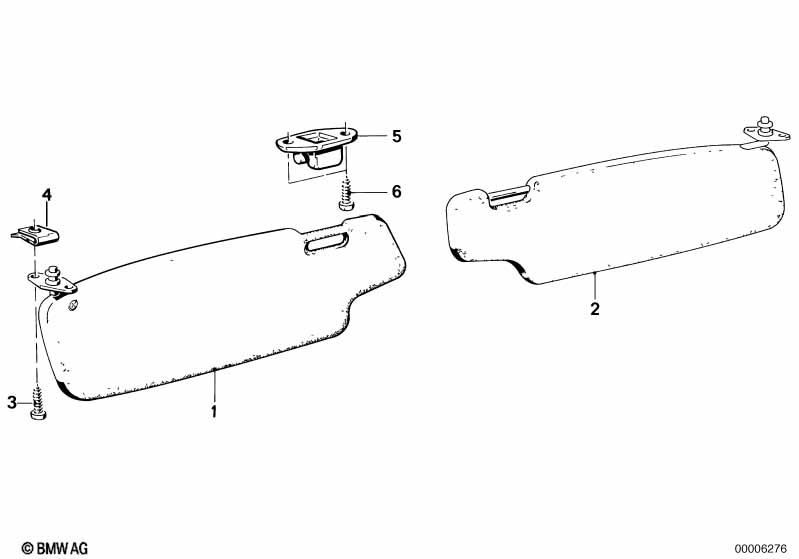

This Sun visor technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Left sun visor | ANTHRAZIT | 1 | 08/1979 | 51161873013 | ENDED | Shop at ECS Tuning | |||
| 02 | Right sun visor | ANTHRAZIT | 1 | 08/1979 | 51161920064 | $167.68 | ENDED | Shop at ECS Tuning | ||
| 02 | Left illuminated sun visor | ANTHRAZIT | 1 | 05/1982 | 51161920065 | $195.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Left illuminated sun visor | ANTHRAZIT | 1 | 05/1982 | 51161920065 | $195.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Right sun visor | NUTRIA | 1 | 09/1984 | 51161929214 | ENDED | Shop at ECS Tuning | |||
| 02 | Right sun visor | NUTRIA | 1 | 09/1984 | 51161929214 | ENDED | Shop at ECS Tuning | |||
| 02 | Left illuminated sun visor | NUTRIA | 1 | 09/1984 | 51161929219 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 02 | Left illuminated sun visor | NUTRIA | 1 | 09/1984 | 51161929219 | $122.76 | ENDED | Shop at ECS Tuning | ||
| 02 | Left illuminated sun visor | PINIENGRUEN | 1 | 09/1984 | 51161929221 | ENDED | Shop at ECS Tuning | |||
| 02 | Left illuminated sun visor | PINIENGRUEN | 1 | 09/1984 | 51161929221 | ENDED | Shop at ECS Tuning | |||
| 02 | Left illuminated sun visor | INDIGO | 1 | 06/1987 | 51161979501 | ENDED | Shop at ECS Tuning | |||
| 02 | Left illuminated sun visor | INDIGO | 1 | 06/1987 | 51161979501 | ENDED | Shop at ECS Tuning | |||
| 02 | Left illuminated sun visor | HAVANNA | 1 | 06/1987 | 51161979503 | ENDED | Shop at ECS Tuning | |||
| 02 | Left illuminated sun visor | HAVANNA | 1 | 06/1987 | 51161979503 | ENDED | Shop at ECS Tuning | |||
| 02 | Right sun visor | INDIGO | 1 | 06/1987 | 51161979506 | $146.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Right sun visor | INDIGO | 1 | 06/1987 | 51161979506 | $146.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Right sun visor | HAVANNA | 1 | 06/1987 | 51161979508 | ENDED | Shop at ECS Tuning | |||
| 02 | Right sun visor | HAVANNA | 1 | 06/1987 | 51161979508 | ENDED | Shop at ECS Tuning | |||
| For vehicles with High Line |
=Yes |
|||||||||
| 02 | Left illuminated sun visor | LOTOSWEISS | 1 | 51168106523 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right sun visor | LOTOSWEISS | 1 | 51168106524 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left illuminated sun visor | NATUR | 1 | 51168106525 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right sun visor | NATUR | 1 | 51168106526 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left illuminated sun visor | SILBER | 1 | 51168106527 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right sun visor | SILBER | 1 | 51168106528 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left sun visor | SCHWARZ | 1 | 51168106751 | ENDED | Shop at ECS Tuning | ||||
| 03 | Recessed oval head sheet-metal screw | ST4,8X19 | 4 | 08/1979 | 07119902483 | $1.64 | Shop at ECS Tuning | |||
| 04 | Body nut | ST4,8-13-ZNS3 | 4 | 08/1979 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 05 | Holder | WEISSBEIGE | 2 | 51161860190 | $3.15 | ENDED | Shop at ECS Tuning | |||
| 05 | Holder | FARNGRUEN | 2 | 51161870865 | $3.15 | Shop at ECS Tuning | ||||
| 05 | Holder | NYLONBRAUN | 2 | 51161870866 | $3.15 | ENDED | Shop at ECS Tuning | |||
| 05 | Sun visor bracket | SCHWARZ | 2 | 51168243576 | $1.68 | Shop at ECS Tuning | ||||
| 06 | Recessed oval head sheet-metal screw | ST4,8X19 | 2 | 08/1979 | 07119902483 | $1.64 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Sun visor?
- This technical diagram illustrates the Sun visor within the Vehicle trim group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Left sun visor (Part #51161873013).
- Which models use the hardware listed in this Sun visor?
- The hardware and components featured in the Sun visor are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Left sun visor (51161873013) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visor assembly?
- Each item in the Sun visor corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Left sun visor by locating its position on the schematic, which then links to the official BMW part number 51161873013 for the Vehicle trim section.
