Sun visor bracket for BMW 7 Series E23 728 (1979)

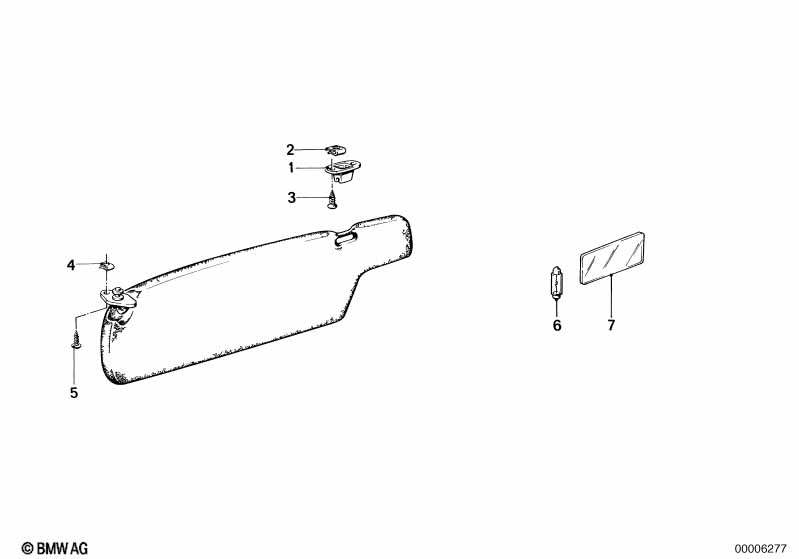

This Sun visor bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | NYLONBRAUN | 2 | 08/1979 | 51161870866 | $3.15 | ENDED | Shop at ECS Tuning | ||
| 01 | Holder | FARNGRUEN | 2 | 09/1981 | 51161870865 | $3.15 | Shop at ECS Tuning | |||
| 01 | Sun visor bracket | SCHWARZ | 2 | 51168243576 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Recessed oval head sheet-metal screw | ST4,8X19 | 4 | 07119902483 | $1.64 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Recessed oval head sheet-metal screw | ST4,8X19 | 4 | 07119902483 | $1.64 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Sun visor bracket?
- This technical diagram illustrates the Sun visor bracket within the Vehicle trim group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Holder (Part #51161870866).
- Which models use the hardware listed in this Sun visor bracket?
- The hardware and components featured in the Sun visor bracket are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Holder (51161870866) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visor bracket assembly?
- Each item in the Sun visor bracket corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Holder by locating its position on the schematic, which then links to the official BMW part number 51161870866 for the Vehicle trim section.
