Sun visor for BMW 7 Series E23 728 (1979)

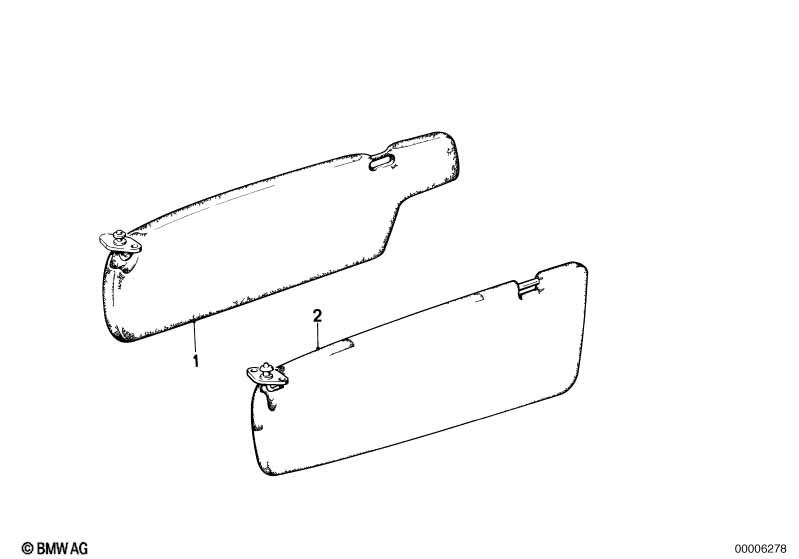

This Sun visor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right sun visor | ANTHRAZIT | 1 | 06/1978 | 10/1980 | 51161853568 | ENDED | Shop at ECS Tuning | ||
| 01 | Right sun visor | FARNGRUEN | 1 | 06/1978 | 10/1980 | 51161853570 | ENDED | Shop at ECS Tuning | ||
| 01 | Left sun visor | ANTHRAZIT | 1 | 06/1978 | 10/1980 | 51161853575 | ENDED | Shop at ECS Tuning | ||
| 01 | Left sun visor | FARNGRUEN | 1 | 06/1978 | 10/1980 | 51161853577 | ENDED | Shop at ECS Tuning | ||
| 01 | Right sun visor | NYLONBRAUN | 1 | 06/1978 | 10/1980 | 51161867562 | ENDED | Shop at ECS Tuning | ||
| 01 | Left sun visor | NYLONBRAUN | 1 | 06/1978 | 10/1980 | 51161867563 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
