Door trim panel, front for BMW 6 Series E24 630CSi (1977)

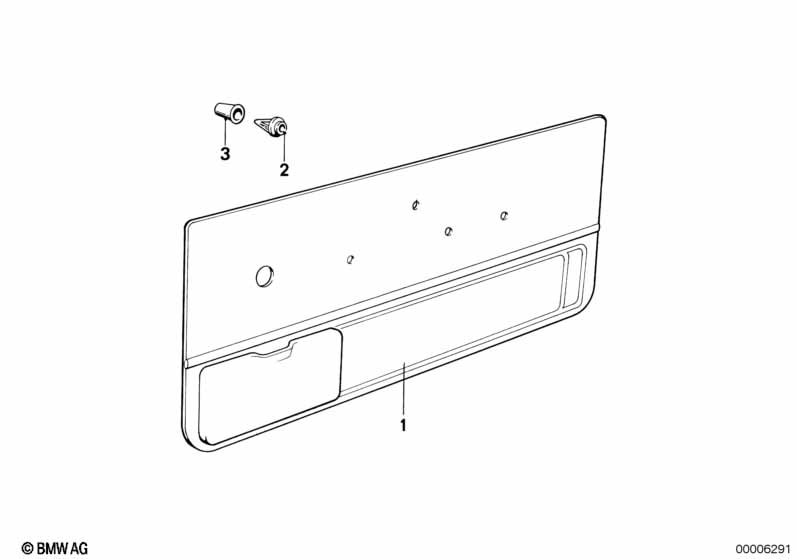

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door trim panel left | BEIGE | 1 | 09/1979 | 51411859321 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel left | NYLONBRAUN | 1 | 09/1979 | 51411868761 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel left | MARINEBLAU | 1 | 09/1979 | 51411868763 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel left | HELLGRAU | 1 | 09/1979 | 51411868765 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel right | HELLGRAU | 1 | 09/1979 | 51411868766 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel left | WEISSBEIGE | 1 | 09/1979 | 51411873285 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
