Door pocket for BMW 3 Series E21 320 (1982)

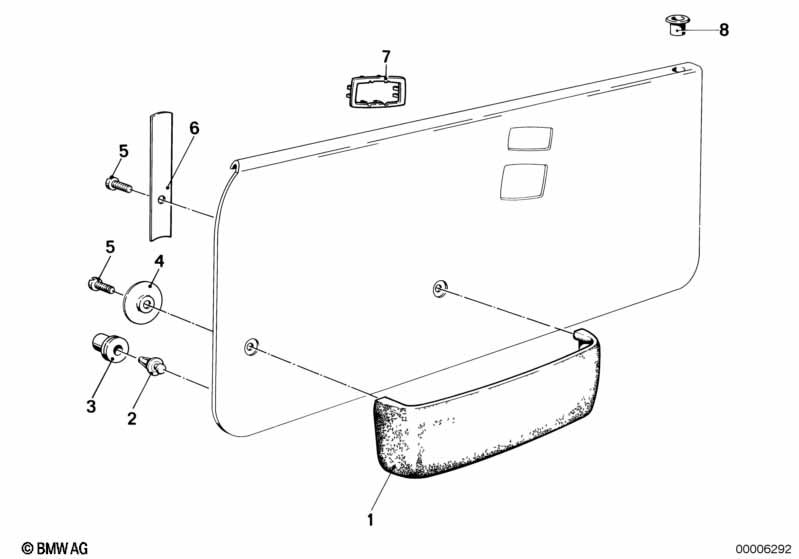

This Door pocket technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door pocket | SCHWARZ | 2 | 51411854725 | $54.20 | Shop at ECS Tuning | ||||
| 01 | Door pocket | PACIFIC | 2 | 09/1980 | 51411881731 | $87.05 | ENDED | Shop at ECS Tuning | ||
| 01 | Door pocket | MOCCA | 2 | 09/1980 | 51411881732 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket | PINIENGRUEN | 2 | 09/1980 | 51411900129 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket | PERLBEIGE | 2 | 09/1980 | 51411912078 | $32.09 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 04 | Washer | 4 | 51411805353 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M4X12-Z3 | 4 | 07119906813 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Switch cover | 1 | 51411854847 | $2.63 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bush | 2 | 51411820874 | $1.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Door pocket?
- This technical diagram illustrates the Door pocket within the Vehicle trim group for the 3 Series E21 320 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Door pocket (Part #51411854725).
- Which models use the hardware listed in this Door pocket?
- The hardware and components featured in the Door pocket are specific to the 3 Series E21 320 produced during 1982. These technical specifications ensure that parts like the Door pocket (51411854725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door pocket assembly?
- Each item in the Door pocket corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Door pocket by locating its position on the schematic, which then links to the official BMW part number 51411854725 for the Vehicle trim section.
