Door pocket for BMW 5 Series E12 525 (1976)

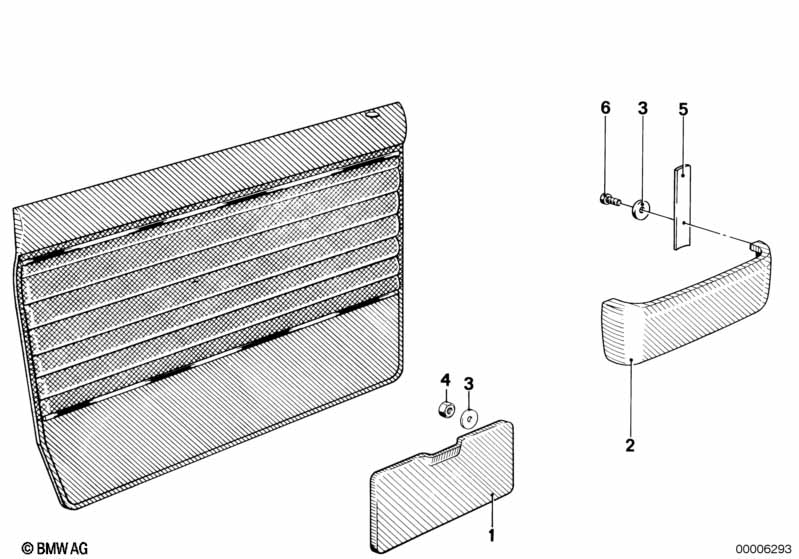

This Door pocket technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Door pocket | HELLGRAU | 2 | 08/1976 | 51411854721 | $37.71 | ENDED | Shop at ECS Tuning | ||
| 02 | Door pocket | NYLONBRAUN | 2 | 08/1976 | 51411854722 | ENDED | Shop at ECS Tuning | |||
| 02 | Door pocket | MARINEBLAU | 2 | 08/1976 | 51411854724 | ENDED | Shop at ECS Tuning | |||
| 02 | Door pocket | SCHWARZ | 2 | 08/1976 | 51411854725 | $54.20 | Shop at ECS Tuning | |||
| 02 | Door pocket | FARNGRUEN | 2 | 08/1976 | 51411857650 | $29.02 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim |
=Yes |
|||||||||
| 02 | Door pocket | WEISS | 2 | 08/1976 | 51411854728 | $50.78 | ENDED | Shop at ECS Tuning | ||
| 02 | Door pocket | BEIGE | 2 | 08/1976 | 51411854729 | $29.02 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | X | 51411805353 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex nut | M4-A2-70 | X | 07119922854 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M4X12-Z3 | 4 | 07119906813 | $0.82 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Door pocket?
- This technical diagram illustrates the Door pocket within the Vehicle trim group for the 5 Series E12 525 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Door pocket (Part #51411854721).
- Which models use the hardware listed in this Door pocket?
- The hardware and components featured in the Door pocket are specific to the 5 Series E12 525 produced during 1976. These technical specifications ensure that parts like the Door pocket (51411854721) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door pocket assembly?
- Each item in the Door pocket corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Door pocket by locating its position on the schematic, which then links to the official BMW part number 51411854721 for the Vehicle trim section.
