Door lining lower front for BMW 7 Series E23 733i (1981)

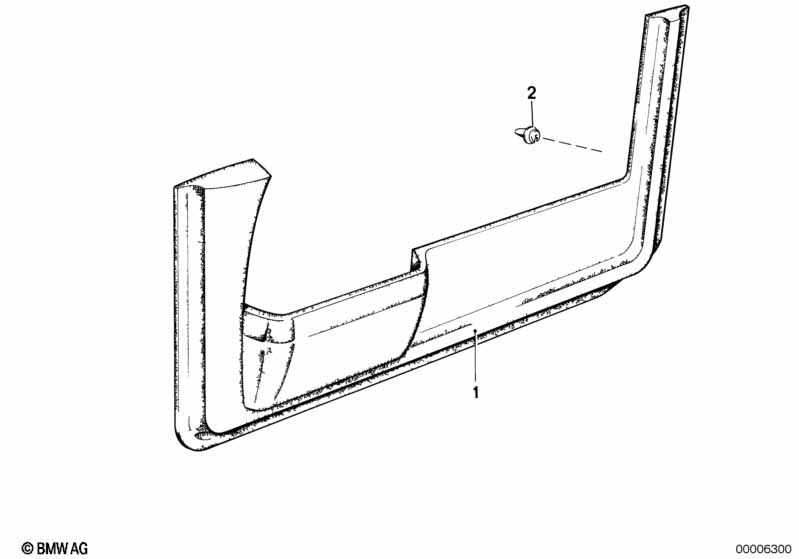

This Door lining lower front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lower trim panel front left | MOCCA | 1 | 09/1982 | 51411880271 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front right | MOCCA | 1 | 09/1982 | 51411880272 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front left | PERGAMENT | 1 | 09/1982 | 51411880273 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front right | PERGAMENT | 1 | 09/1982 | 51411880274 | $210.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front left | HELLGRAU | 1 | 51411857273 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel front right | HELLGRAU | 1 | 51411857274 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel front left | NYLONBRAUN | 1 | 51411857275 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front right | NYLONBRAUN | 1 | 51411857276 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel front left | MARINEBLAU | 1 | 51411857277 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front right | MARINEBLAU | 1 | 51411857278 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front left | ANTHRAZIT | 1 | 51411857279 | $173.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front right | ANTHRAZIT | 1 | 51411857280 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front left | PACIFIC | 1 | 51411880269 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front right | PACIFIC | 1 | 51411880270 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel front left | PINIENGRUEN | 1 | 09/1981 | 51411904087 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front left | PINIENGRUEN | 1 | 09/1981 | 51411904087 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front right | PINIENGRUEN | 1 | 09/1981 | 51411904088 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel front right | PINIENGRUEN | 1 | 09/1981 | 51411904088 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | X | 51411852750 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Door lining lower front?
- This technical diagram illustrates the Door lining lower front within the Vehicle trim group for the 7 Series E23 733i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Door lower trim panel front left (Part #51411880271).
- Which models use the hardware listed in this Door lining lower front?
- The hardware and components featured in the Door lining lower front are specific to the 7 Series E23 733i produced during 1981. These technical specifications ensure that parts like the Door lower trim panel front left (51411880271) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door lining lower front assembly?
- Each item in the Door lining lower front corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Door lower trim panel front left by locating its position on the schematic, which then links to the official BMW part number 51411880271 for the Vehicle trim section.
