Door lining upper front-door pocket for BMW 7 Series E23 735i (1986)

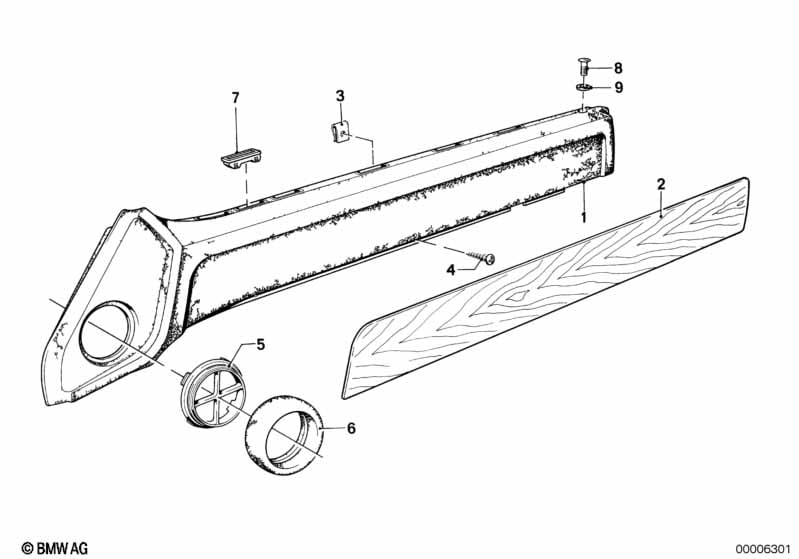

This Door lining upper front-door pocket technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door linig top front left | NUTRIA | 1 | 09/1983 | 51411921859 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door linig top front left | NUTRIA | 1 | 09/1983 | 51411921859 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | NUTRIA | 1 | 09/1983 | 51411921860 | $209.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | NUTRIA | 1 | 09/1983 | 51411921860 | $209.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Door linig top front left | ANTHRAZIT | 1 | 09/1983 | 51411926511 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door linig top front left | ANTHRAZIT | 1 | 09/1983 | 51411926511 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door linig top front left | ANTHRAZIT | 1 | 09/1983 | 51411926511 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | ANTHRAZIT | 1 | 09/1983 | 51411926512 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | ANTHRAZIT | 1 | 09/1983 | 51411926512 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | ANTHRAZIT | 1 | 09/1983 | 51411926512 | $217.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door linig top front left | PINIENGRUEN | 1 | 09/1984 | 51411931221 | $209.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Door linig top front left | PINIENGRUEN | 1 | 09/1984 | 51411931221 | $209.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | PINIENGRUEN | 1 | 09/1984 | 51411931222 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top front right | PINIENGRUEN | 1 | 09/1984 | 51411931222 | $152.89 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO WOODEN COVER | ||||||||||
| 01 | Door linig top front left | ANTHRAZIT | 1 | 51419067450 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining top front right | ANTHRAZIT | 1 | 51419067451 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with High Line |
=Yes |
|||||||||
| 01 | Door linig top front left | MITTELBRAUN | 1 | 51411959809 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining top front right | MITTELBRAUN | 1 | 51411959810 | $555.77 | ENDED | Shop at ECS Tuning | |||
| 01 | Door linig top front left | QUARZ GRAU | 1 | 51411959811 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining top front right | QUARZ GRAU | 1 | 51411959812 | $554.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Wooden cover front left | 1 | 09/1983 | 51411926501 | $186.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Wooden cover front left | 1 | 09/1983 | 51411926501 | $186.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Wooden cover front right | 1 | 09/1983 | 51411926502 | $186.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Wooden cover front right | 1 | 09/1983 | 51411926502 | $186.89 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | ST4,2-1-ZNS3 | X | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X16-ABW | X | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Air outlet | 2 | 51411852739 | $7.04 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket | 2 | 51411852743 | $8.99 | Shop at ECS Tuning | |||||
| 07 | Defroster nozzle | 4 | 51411852726 | $4.93 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
