Door pocket for BMW 3 Series E30 325i (1989)

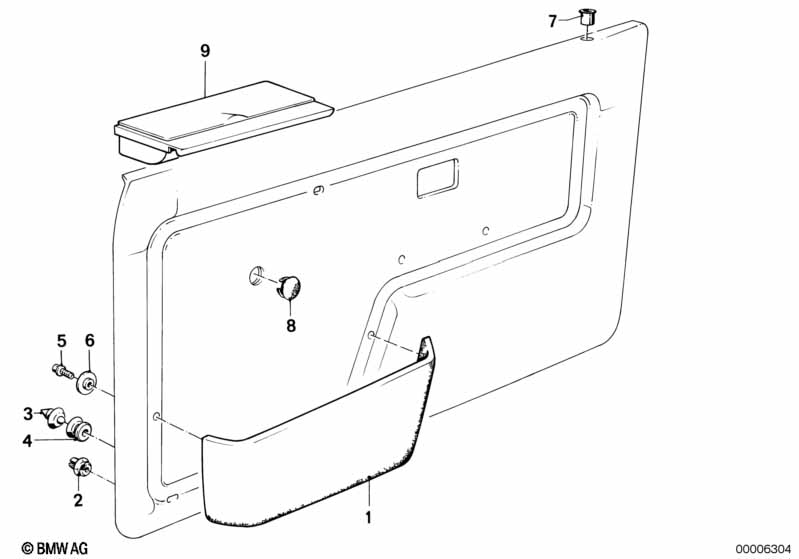

This Door pocket technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door pocket, left | SCHWARZ | 1 | 51411911191 | $34.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket, right | SCHWARZ | 1 | 51411911192 | $34.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket, left | CARDINALROT | 1 | 51411940291 | $34.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket, right | CARDINALROT | 1 | 51411940292 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket, left | KARMESINROT | 1 | 51418112209 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket, right | KARMESINROT | 1 | 51418112210 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 01 | Door pocket, left | NATUR | 1 | 09/1987 | 51411976087 | $1.15 | ENDED | Shop at ECS Tuning | ||
| 01 | Door pocket, right | NATUR | 1 | 09/1987 | 51411976088 | $34.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Door pocket, left | HAVANNA | 1 | 09/1987 | 51411976089 | $30.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Door pocket, right | HAVANNA | 1 | 09/1987 | 51411976090 | $34.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Door pocket, left | SILBER | 1 | 09/1987 | 51411976091 | $34.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door pocket, right | SILBER | 1 | 09/1987 | 51411976092 | $34.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door pocket, left | INDIGO | 1 | 09/1987 | 51411976093 | $34.98 | ENDED | Shop at ECS Tuning | ||
| 01 | Door pocket, right | INDIGO | 1 | 09/1987 | 51411976094 | $34.98 | ENDED | Shop at ECS Tuning | ||
| 03 | Clip lower part | X | 51411922138 | $1.25 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clip upper part | X | 51411922137 | $1.25 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X12-Z3 | 4 | 07119906813 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Washer | 4 | 51411805353 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bush | D=11MM | 2 | 51411911964 | $0.39 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO EMERGENCY TOOL ELECTR.WINDOW |
||||||||||
| 08 | Cap | SCHWARZ | 2 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
| 08 | Cap | KARMESINROT | 2 | 51418112207 | $5.96 | ENDED | Shop at ECS Tuning | |||
| 08 | Cap | CARDINALROT | 2 | 09/1985 | 51411945782 | ENDED | Shop at ECS Tuning | |||
| 08 | Cap | SILBER | 2 | 09/1987 | 51411967923 | $5.44 | Shop at ECS Tuning | |||
| 08 | Cap | INDIGO | 2 | 09/1987 | 51411967924 | $5.44 | Shop at ECS Tuning | |||
| 08 | Cap | HAVANNA | 2 | 09/1987 | 51411967925 | $6.27 | ENDED | Shop at ECS Tuning | ||
| 08 | Cap | NATUR | 2 | 09/1987 | 51411967927 | $6.37 | ENDED | Shop at ECS Tuning | ||
| ONLY FOR INNER EQUIPMENT M TECHNIC | ||||||||||
| 09 | Cointray | SCHWARZ | 2 | 51418110033 | $36.85 | Shop at ECS Tuning | ||||
| 09 | Cointray | SILBER | 2 | 51418110034 | $32.65 | Shop at ECS Tuning | ||||
| 09 | Cointray | INDIGO | 2 | 51418110035 | $32.65 | ENDED | Shop at ECS Tuning | |||
| 09 | Cointray | NATUR | 2 | 51418110036 | $32.65 | Shop at ECS Tuning | ||||
| 09 | Cointray | HAVANNA | 2 | 51418110037 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cointray | KARMESINROT | 2 | 51418110038 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
