Armrest-single parts for BMW 3 Series E21 316 (1983)

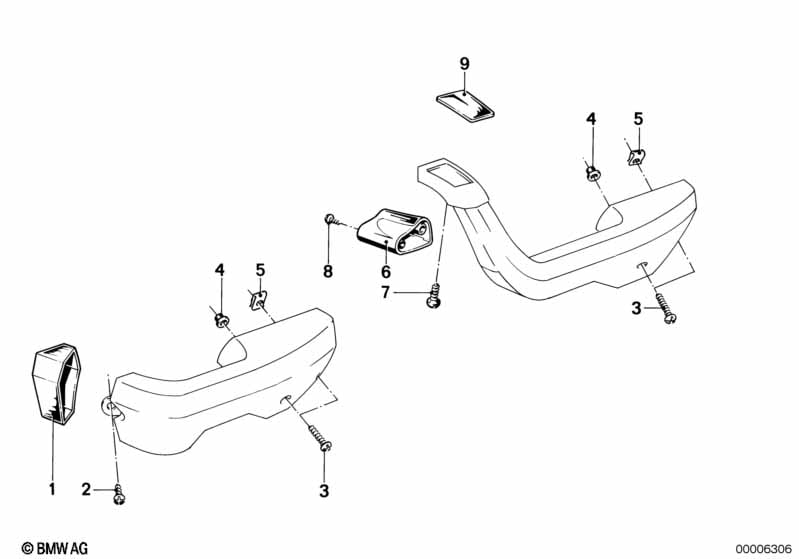

This Armrest-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cap right | 1 | 51411843082 | $11.72 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,8X16 Z2 | 1 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Sheet metal screw | ST4,8X38-R-ZNFE | 4 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 4 | 51411801262 | $0.37 | ENDED | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Intermediate piece, left | 1 | 51411842481 | $24.27 | ENDED | Shop at ECS Tuning | ||||
| 07 | Csk.lenshead screw | ST3,9X19 | 1 | 07119902243 | $1.67 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,2X13 | 2 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 09/1980 | 51411883880 | $7.44 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
