Armrest-single parts for BMW 5 Series E12 528 (1976)

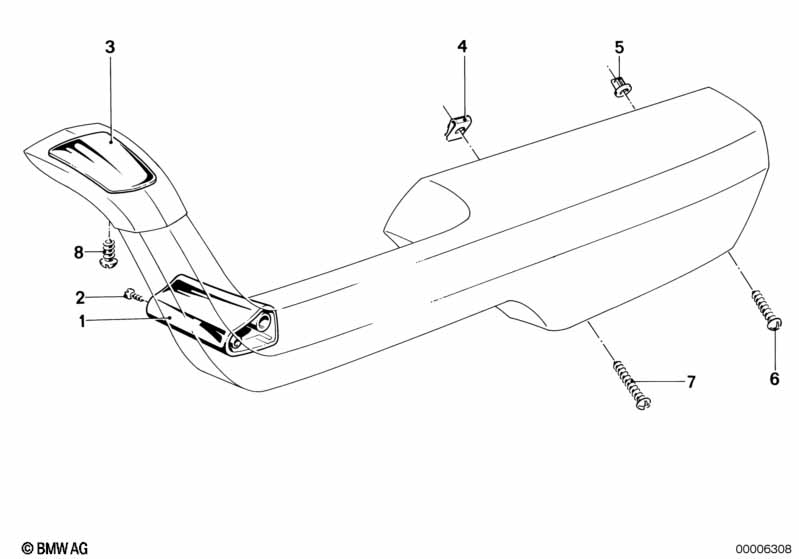

This Armrest-single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 01 | Intermediate piece, left | 1 | 51411815251 | $29.16 | ENDED | Shop at ECS Tuning | ||||
| 01 | Intermediate piece, right | 1 | 51411815252 | $30.05 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,2X13 | 4 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Cover | 2 | 51411817609 | $8.88 | Shop at ECS Tuning | |||||
| 04 | Body nut | ST4,8-13-ZNS3 | 6 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | 6 | 51411801262 | $0.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | ST4,8X38-R-ZNFE | 2 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X45 | 2 | 07119906771 | $0.18 | Shop at ECS Tuning | ||||

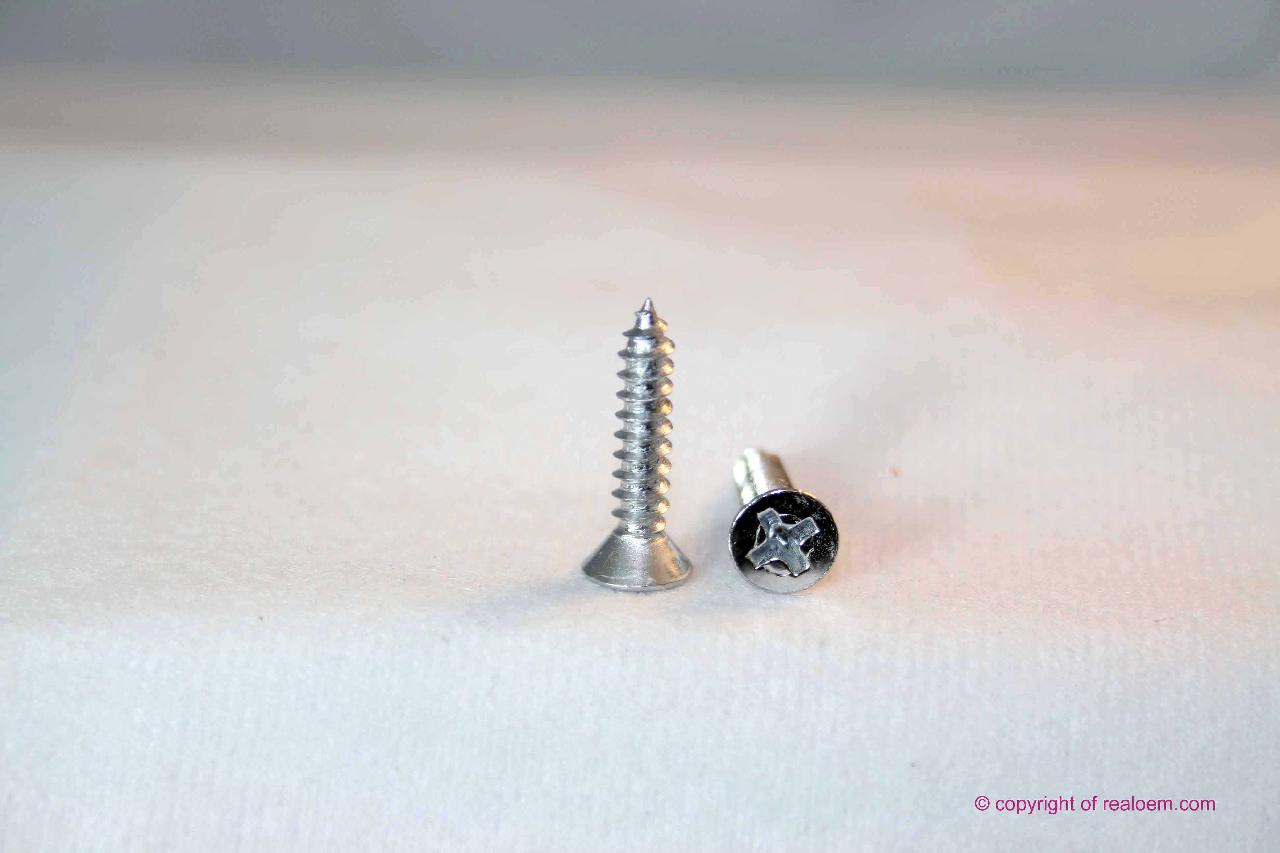

| 08 | Csk.lenshead screw | ST3,9X19 | 2 | 07119902243 | $1.67 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Armrest-single parts?
- This technical diagram illustrates the Armrest-single parts within the Vehicle trim group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Intermediate piece, left (Part #51411815251).
- Which models use the hardware listed in this Armrest-single parts?
- The hardware and components featured in the Armrest-single parts are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Intermediate piece, left (51411815251) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest-single parts assembly?
- Each item in the Armrest-single parts corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Intermediate piece, left by locating its position on the schematic, which then links to the official BMW part number 51411815251 for the Vehicle trim section.
