Door lining-cap for BMW 7 Series E23 728 (1978)

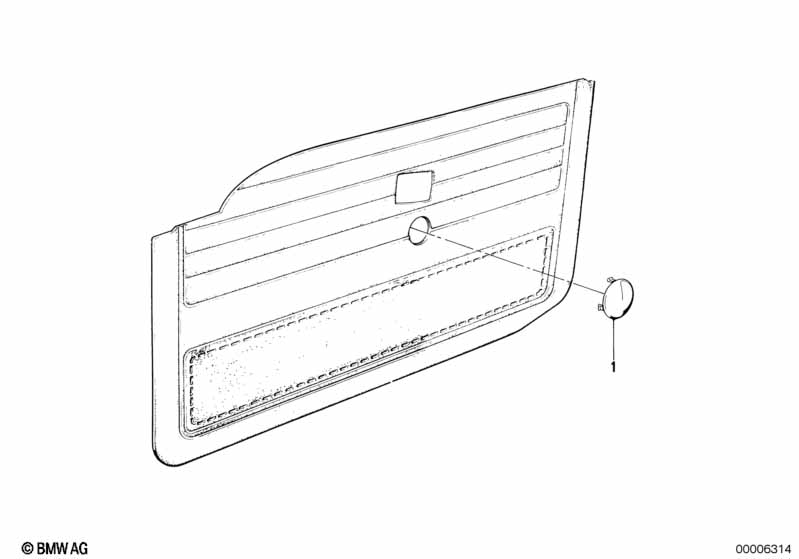

This Door lining-cap technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO EMERGENCY TOOL ELECTR.WINDOW |
||||||||||
| 01 | Cap | NYLONBRAUN | 2 | 08/1979 | 51411869872 | ENDED | Shop at ECS Tuning | |||
| 01 | Cap | MARINEBLAU | 2 | 08/1979 | 51411869873 | $5.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Cap | HELLGRAU | 2 | 08/1979 | 51411869874 | ENDED | Shop at ECS Tuning | |||
| 01 | Cap | VELOURSROT | 2 | 08/1979 | 51411869876 | ENDED | Shop at ECS Tuning | |||
| 01 | Cap | FARNGRUEN | 2 | 09/1981 | 51411869875 | ENDED | Shop at ECS Tuning | |||
| 01 | Cap | SCHWARZ | 2 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
