Door lining lower rear for BMW 7 Series E23 733i (1981)

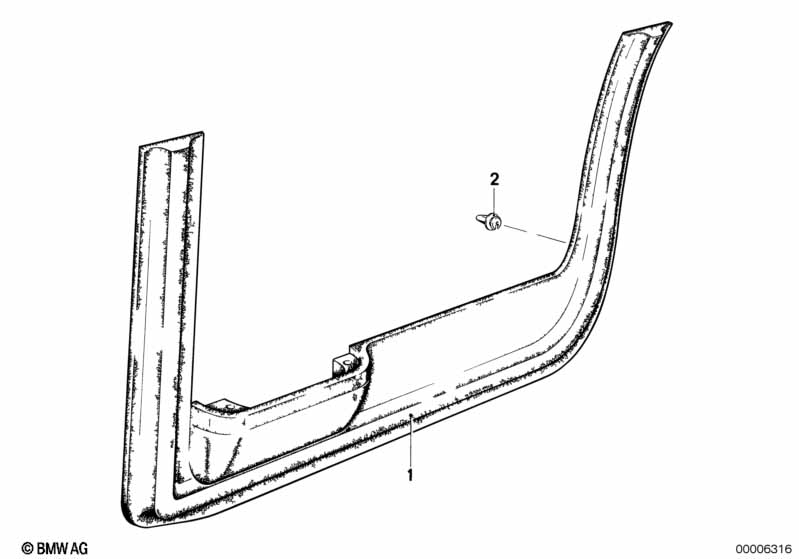

This Door lining lower rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lower trim panel rear left | MOCCA | 1 | 09/1982 | 51421880413 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel rear right | MOCCA | 1 | 09/1982 | 51421880414 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel rear left | PERGAMENT | 1 | 09/1982 | 51421880415 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel rear right | PERGAMENT | 1 | 09/1982 | 51421880416 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel rear left | HELLGRAU | 1 | 51421857507 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear right | HELLGRAU | 1 | 51421857508 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear left | NYLONBRAUN | 1 | 51421857509 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear right | NYLONBRAUN | 1 | 51421857510 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear left | MARINEBLAU | 1 | 51421857511 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear right | MARINEBLAU | 1 | 51421857512 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear left | ANTHRAZIT | 1 | 51421857513 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear right | ANTHRAZIT | 1 | 51421857514 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lower trim panel rear left | PACIFIC | 1 | 51421880411 | $133.92 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel rear right | PACIFIC | 1 | 51421880412 | $251.10 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lower trim panel rear left | PINIENGRUEN | 1 | 09/1981 | 51421904109 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel rear left | PINIENGRUEN | 1 | 09/1981 | 51421904109 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel rear right | PINIENGRUEN | 1 | 09/1981 | 51421904110 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lower trim panel rear right | PINIENGRUEN | 1 | 09/1981 | 51421904110 | $133.92 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | X | 51411852750 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
