Door trim, rear for BMW 7 Series E23 745i (1987)

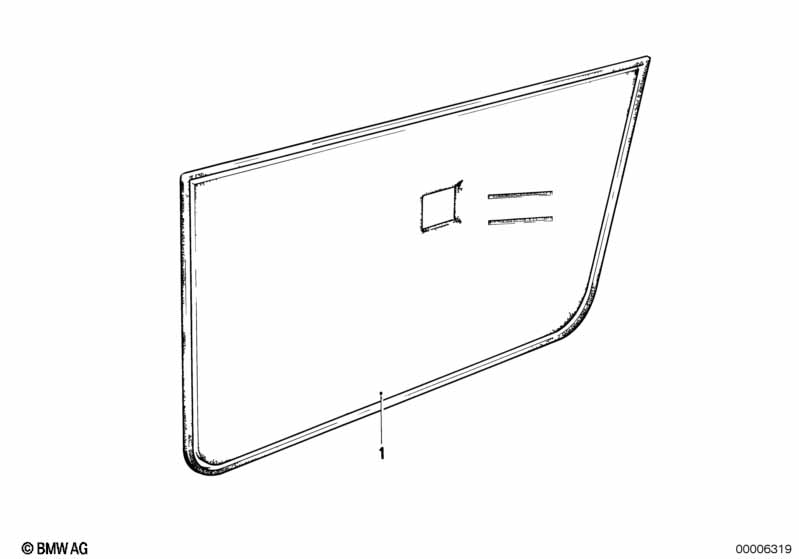

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining leather rear right | OYSTER | 1 | 51423909342 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear left | OYSTER | 1 | 51423909343 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | PACIFIC BLUE | 1 | 51423909344 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear left | PACIFIC BLUE | 1 | 51423909345 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 01/1983 | 51421909535 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 01/1983 | 51421909536 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | PACIFIC | 1 | 01/1983 | 51421909537 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | PACIFIC | 1 | 01/1983 | 51421909538 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | NUTRIA | 1 | 01/1983 | 51421909539 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | NUTRIA | 1 | 01/1983 | 51421909540 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | PERLBEIGE | 1 | 01/1983 | 51421909541 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | PERLBEIGE | 1 | 01/1983 | 51421909542 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | PINIENGRUEN | 1 | 01/1983 | 51421909543 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | PINIENGRUEN | 1 | 01/1983 | 51421909544 | $108.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 01/1985 | 51421930763 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 01/1985 | 51421930764 | $119.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | PACIFIC | 1 | 01/1985 | 51421930765 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | PACIFIC | 1 | 01/1985 | 51421930766 | $119.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | NUTRIA | 1 | 01/1985 | 51421930767 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | NUTRIA | 1 | 01/1985 | 51421930768 | $119.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | PERLBEIGE | 1 | 01/1985 | 51421930769 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | PERLBEIGE | 1 | 01/1985 | 51421930770 | $119.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | PINIENGRUEN | 1 | 01/1985 | 51421930771 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | PINIENGRUEN | 1 | 01/1985 | 51421930772 | $119.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | LAMA | 1 | 01/1985 | 51421932617 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | LAMA | 1 | 01/1985 | 51421932618 | $119.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear left | CARDINALROT | 1 | 05/1986 | 51421945793 | $116.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil rear right | CARDINALROT | 1 | 05/1986 | 51421945794 | $119.51 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
