Fine wood trim for BMW 5 Series E12 528i (1981)

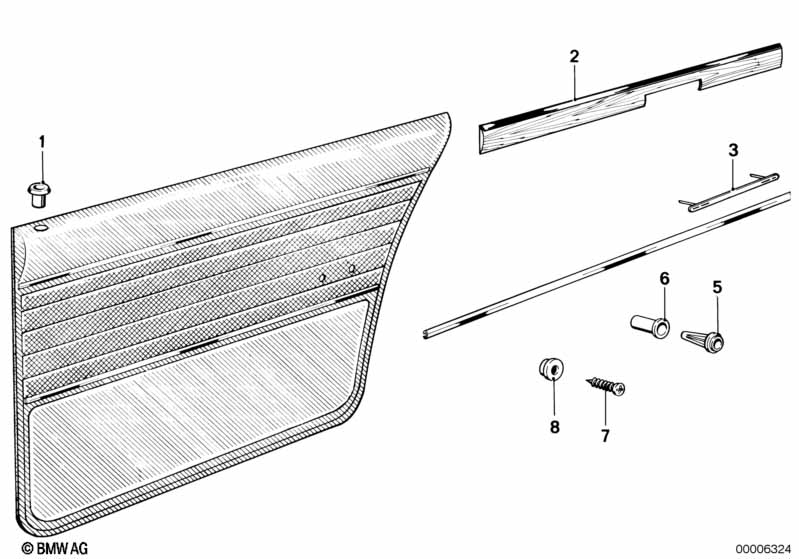

This Fine wood trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bush | 2 | 51411820874 | $1.47 | Shop at ECS Tuning | |||||
| 02 | Wooden cover rear left | 1 | 51421856981 | ENDED | Shop at ECS Tuning | |||||
| 02 | Wooden cover rear right | 1 | 51421856982 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 02 | Wooden cover rear left | 1 | 51421865501 | ENDED | Shop at ECS Tuning | |||||
| 02 | Wooden cover rear right | 1 | 51421865502 | ENDED | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 06 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 07 | Recessed oval head sheet-metal screw | ST2,9X16 | 4 | 07119902423 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hollow washer | 4 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
