Lateral trim panel rear for BMW 6 Series E24 635CSi (1989)

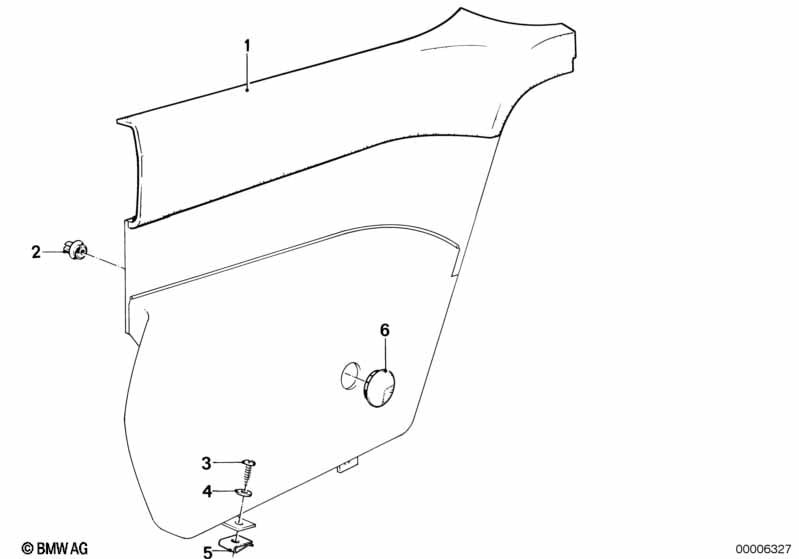

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Waist rail trim strip, left rear | ANTHRAZIT | 1 | 51361843655 | $477.65 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | ANTHRAZIT | 1 | 51361843656 | $477.65 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | INDIGO DUNKEL | 1 | 06/1987 | 51361979691 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | INDIGO DUNKEL | 1 | 06/1987 | 51361979691 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | INDIGO DUNKEL | 1 | 06/1987 | 51361979692 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | INDIGO DUNKEL | 1 | 06/1987 | 51361979692 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | HAVANNA | 1 | 06/1987 | 51361979693 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | HAVANNA | 1 | 06/1987 | 51361979693 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | HAVANNA | 1 | 06/1987 | 51361979694 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | HAVANNA | 1 | 06/1987 | 51361979694 | ENDED | Shop at ECS Tuning | |||
| For vehicles with High Line |
=Yes |
|||||||||
| 01 | Waist rail trim strip, left rear | QUARZGRAU | 1 | 51361965545 | $340.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | QUARZGRAU | 1 | 51361965546 | $419.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | HAVANNA | 1 | 51361965547 | $399.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | HAVANNA | 1 | 51361965548 | $399.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | SCHIEFER | 1 | 51361965549 | $419.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | SCHIEFER | 1 | 51361965570 | $340.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | SCHWARZ | 1 | 51412237571 | $333.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | SCHWARZ | 1 | 51412237572 | $333.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, left rear | DUNKELBRAUN | 1 | 51452238893 | $349.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Waist rail trim strip, right rear | DUNKELBRAUN | 1 | 51452238894 | $349.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | 8 | 51361839365 | ENDED | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | ST4,8X9,5-C-H-Z | 4 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,2X16-Z2 | 4 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 05 | Body nut | ST4,2-1-ZNS3 | 4 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Cap | INDIGO | 2 | 06/1987 | 51411967924 | $5.44 | Shop at ECS Tuning | |||
| 06 | Cap | INDIGO | 2 | 06/1987 | 51411967924 | $5.44 | Shop at ECS Tuning | |||
| 06 | Cap | HAVANNA | 2 | 06/1987 | 51411967925 | $6.27 | ENDED | Shop at ECS Tuning | ||
| 06 | Cap | HAVANNA | 2 | 06/1987 | 51411967925 | $6.27 | ENDED | Shop at ECS Tuning | ||
| 06 | Cap | ANTILOPE | 2 | 06/1987 | 51411967926 | ENDED | Shop at ECS Tuning | |||
| 06 | Cap | ANTILOPE | 2 | 06/1987 | 51411967926 | ENDED | Shop at ECS Tuning | |||
| 06 | Cap | NATUR | 2 | 06/1987 | 51411967927 | $6.37 | ENDED | Shop at ECS Tuning | ||
| 06 | Cap | NATUR | 2 | 06/1987 | 51411967927 | $6.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with High Line |
=Yes |
|||||||||
| 06 | Cap | LOTOSWEISS | 2 | 51431968070 | $20.03 | Shop at ECS Tuning | ||||
| 06 | Cap | NATUR | 2 | 51431968071 | $18.22 | ENDED | Shop at ECS Tuning | |||
| 06 | Cap | SILBER | 2 | 51431968072 | $17.69 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Lateral trim panel rear?
- This technical diagram illustrates the Lateral trim panel rear within the Vehicle trim group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Waist rail trim strip, left rear (Part #51361843655).
- Which models use the hardware listed in this Lateral trim panel rear?
- The hardware and components featured in the Lateral trim panel rear are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Waist rail trim strip, left rear (51361843655) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lateral trim panel rear assembly?
- Each item in the Lateral trim panel rear corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Waist rail trim strip, left rear by locating its position on the schematic, which then links to the official BMW part number 51361843655 for the Vehicle trim section.
