Door lining upper rear for BMW 7 Series E23 733i (1979)

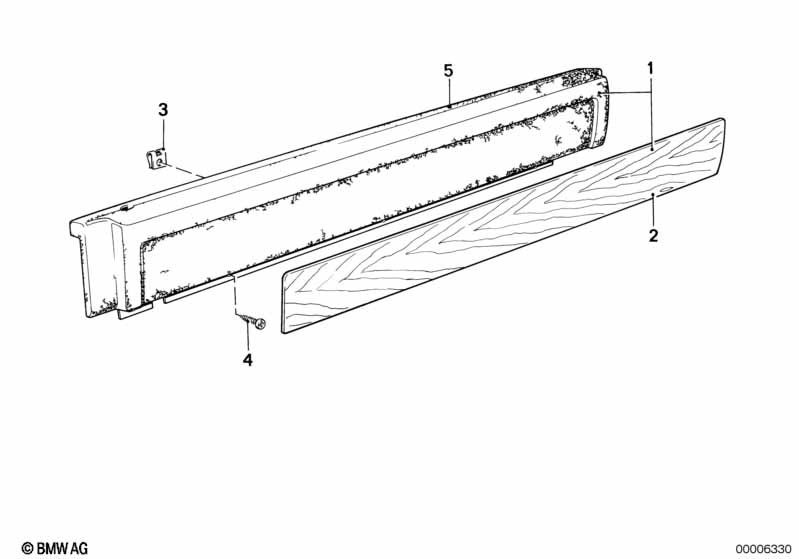

This Door lining upper rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining top rear left | 1 | 51421848447 | ENDED | Shop at ECS Tuning | |||||
| 01 | Door lining top rear right | 1 | 51421848448 | ENDED | Shop at ECS Tuning | |||||
| 02 | Wooden cover rear left | 1 | 01/1981 | 51421851481 | $133.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Wooden cover rear right | 1 | 01/1981 | 51421851482 | $133.92 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | ST4,2-1-ZNS3 | 6 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X16-ABW | 6 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Door lining top rear left | 1 | 01/1984 | 51421848449 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Door lining top rear right | 1 | 01/1984 | 51421848450 | $129.46 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
