Rear door ashtray for BMW 7 Series E23 732i (1986)

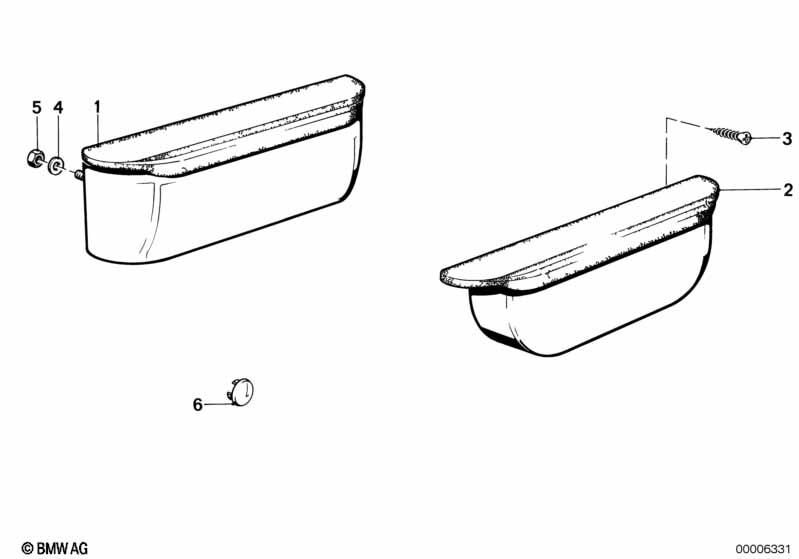

This Rear door ashtray technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.

Rear door ashtray
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Ashtray rear ANTHRAZIT 2 08/1979 51161857600 ENDED Shop at ECS Tuning
02 Ashtray rear PACIFIC 2 08/1979 51161875560 $35.99 ENDED Shop at ECS Tuning
02 Ashtray rear PINIENGRUEN 2 09/1981 51161904029 $35.99 ENDED Shop at ECS Tuning
02 Ashtray rear NUTRIA 1 09/1982 51161911569 $35.99 ENDED Shop at ECS Tuning
02 Ashtray rear PERLBEIGE 1 09/1982 51161911570 $35.99 ENDED Shop at ECS Tuning
02 Ashtray rear LAMA 1 09/1984 51161935799 $35.99 ENDED Shop at ECS Tuning
03 Csk.lenshead screw ST3,9X19 4 08/1979 07119902243 $1.67 Shop at ECS Tuning
ONLY APPLIES TO
EMERGENCY TOOL ELECTR.WINDOW
06 Cap SCHWARZ 2 51411869871 $5.44 Shop at ECS Tuning
06 Cap PACIFIC 2 08/1979 51411875392 $10.02 Shop at ECS Tuning
06 Cap CHERRY 2 09/1980 51411902310 ENDED Shop at ECS Tuning
06 Cap PINIENGRUEN 2 09/1981 51411904066 $10.02 ENDED Shop at ECS Tuning
06 Cap NUTRIA 2 09/1982 51411912113 $7.63 Shop at ECS Tuning
06 Cap PERLBEIGE 2 09/1982 51411912114 $6.97 ENDED Shop at ECS Tuning
06 Cap TAURUSROT 2 09/1984 51411930740 ENDED Shop at ECS Tuning
06 Cap LAMA 2 09/1984 51411932600 ENDED Shop at ECS Tuning
06 Cap SILBER 2 09/1984 51411967923 $5.44 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
