Door trim panel/rear wooden cover for BMW 5 Series E12 530i (1978)

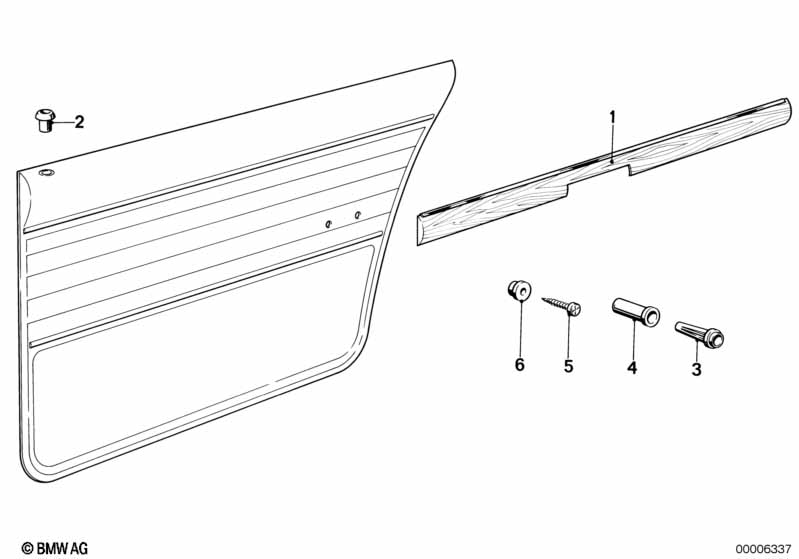

This Door trim panel/rear wooden cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wooden cover rear left | 1 | 09/1977 | 51421865501 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wooden cover rear right | 1 | 09/1977 | 51421865502 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bush | 2 | 51411820874 | $1.47 | Shop at ECS Tuning | |||||
| 03 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 04 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 05 | Recessed oval head sheet-metal screw | ST2,9X16 | 4 | 07119902423 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Hollow washer | 4 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning |
