Door lining upper rear for BMW 5 Series E28 518i (1983)

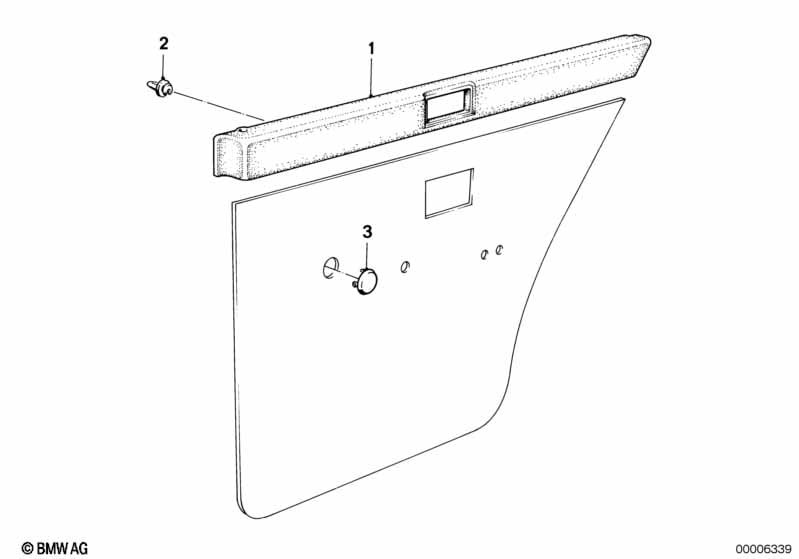

This Door lining upper rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining top rear left | ANTHRAZIT | 1 | 51421874265 | $105.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear right | ANTHRAZIT | 1 | 51421874266 | $105.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO EMERGENCY TOOL ELECTR.WINDOW |
||||||||||
| 03 | Cap | SCHWARZ | 2 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
| 03 | Cap | PACIFIC | 2 | 51411875392 | $10.02 | Shop at ECS Tuning | ||||
| 03 | Cap | PINIENGRUEN | 2 | 51411904066 | $10.02 | ENDED | Shop at ECS Tuning | |||
| 03 | Cap | CHERRY | 2 | 09/1982 | 09/1984 | 51411902310 | ENDED | Shop at ECS Tuning | ||
| 03 | Cap | NUTRIA | 2 | 09/1982 | 51411912113 | $7.63 | Shop at ECS Tuning | |||
| 03 | Cap | PERLBEIGE | 2 | 09/1982 | 51411912114 | $6.97 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518i Door lining upper rear?
- This technical diagram illustrates the Door lining upper rear within the Vehicle trim group for the 5 Series E28 518i produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Door lining top rear left (Part #51421874265).
- Which models use the hardware listed in this Door lining upper rear?
- The hardware and components featured in the Door lining upper rear are specific to the 5 Series E28 518i produced during 1983. These technical specifications ensure that parts like the Door lining top rear left (51421874265) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door lining upper rear assembly?
- Each item in the Door lining upper rear corresponds to the numbered list below the illustration. For the 5 Series E28 518i, you can identify the Door lining top rear left by locating its position on the schematic, which then links to the official BMW part number 51421874265 for the Vehicle trim section.
