Door trim panel, front for BMW 5 Series E28 528i (1987)

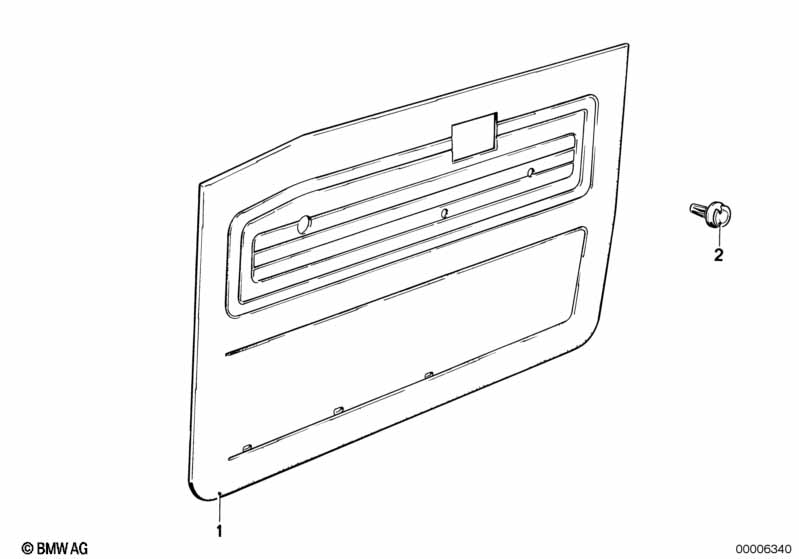

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | SCHWARZ | 1 | 09/1984 | 51411932453 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front right | SCHWARZ | 1 | 09/1984 | 51411932454 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front left | PACIFIC | 1 | 09/1984 | 51411932455 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front right | PACIFIC | 1 | 09/1984 | 51411932456 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front left | NUTRIA | 1 | 09/1984 | 51411932457 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front right | NUTRIA | 1 | 09/1984 | 51411932458 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front left | PERLBEIGE | 1 | 09/1984 | 51411932459 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front right | PERLBEIGE | 1 | 09/1984 | 51411932460 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front left | PINIENGRUEN | 1 | 09/1984 | 51411932461 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front right | PINIENGRUEN | 1 | 09/1984 | 51411932462 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl version or Leather trim |
=Yes =Yes |
|||||||||
| 01 | Door lining vynil front left | SCHWARZ | 1 | 09/1984 | 51411902073 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil front right | SCHWARZ | 1 | 09/1984 | 51411902074 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front left | PACIFIC | 1 | 09/1984 | 51411902075 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front right | PACIFIC | 1 | 09/1984 | 51411902076 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front left | PINIENGRUEN | 1 | 09/1984 | 51411902081 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front right | PINIENGRUEN | 1 | 09/1984 | 51411902082 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front left | NUTRIA | 1 | 09/1984 | 51411912123 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front right | NUTRIA | 1 | 09/1984 | 51411912124 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil front left | PERLBEIGE | 1 | 09/1984 | 51411912125 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil front right | PERLBEIGE | 1 | 09/1984 | 51411912126 | $184.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | 1 | 09/1984 | 51411870718 | $0.24 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528i Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the 5 Series E28 528i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, fabric, front left (Part #51411932453).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the 5 Series E28 528i produced during 1987. These technical specifications ensure that parts like the Door trim panel, fabric, front left (51411932453) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the 5 Series E28 528i, you can identify the Door trim panel, fabric, front left by locating its position on the schematic, which then links to the official BMW part number 51411932453 for the Vehicle trim section.
