Door trim, rear for BMW 5 Series E28 525e (1987)

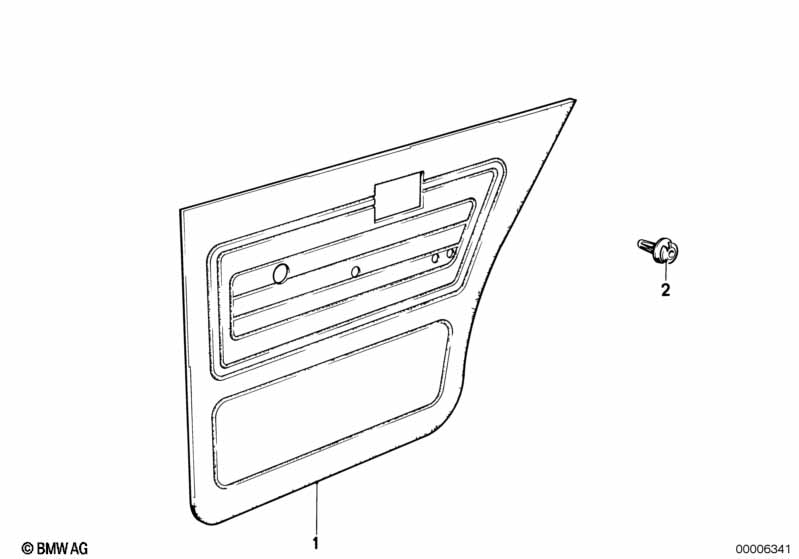

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth version |
=Yes |
|||||||||
| 01 | Door lining cloth rear left | SCHWARZ | 1 | 04/1986 | 51421953793 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | SCHWARZ | 1 | 04/1986 | 51421953794 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | 0263 PACIFIC | 1 | 04/1986 | 51421953795 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0263 PACIFIC | 1 | 04/1986 | 51421953796 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | NUTRIA | 1 | 04/1986 | 51421953797 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | NUTRIA | 1 | 04/1986 | 51421953798 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | PERLBEIGE | 1 | 04/1986 | 51421953799 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | PERLBEIGE | 1 | 04/1986 | 51421953800 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | PINIENGRUEN | 1 | 04/1986 | 51421953801 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | PINIENGRUEN | 1 | 04/1986 | 51421953802 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
