Armrest, front for BMW 5 Series E28 525e (1987)

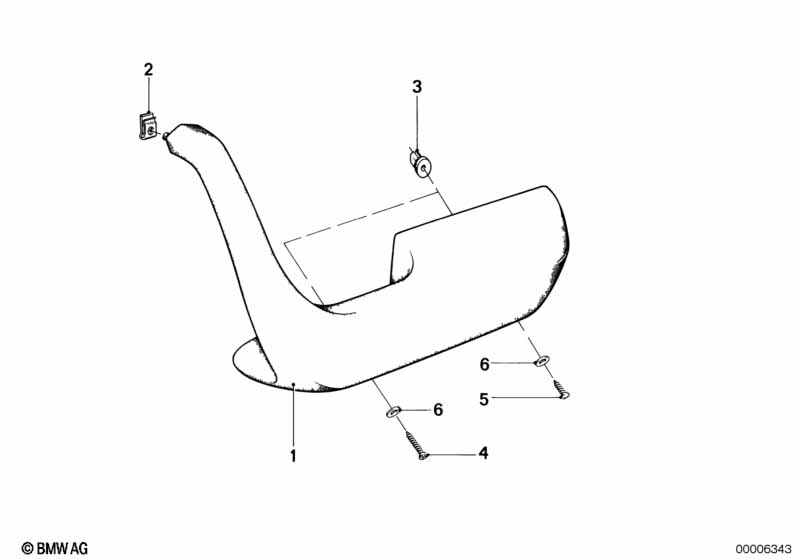

This Armrest, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armrest front left | SCHWARZ | 1 | 51411885263 | $169.05 | Shop at ECS Tuning | ||||
| 01 | Armrest front right | SCHWARZ | 1 | 51411885264 | $193.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest front left | PACIFIC | 1 | 51411885265 | $169.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest front right | PACIFIC | 1 | 51411885266 | $193.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest front left | PINIENGRUEN | 1 | 51411885271 | $193.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest front right | PINIENGRUEN | 1 | 51411885272 | $193.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest front left | NUTRIA | 1 | 09/1982 | 51411910995 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest front right | NUTRIA | 1 | 09/1982 | 51411910996 | $153.56 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest front left | PERLBEIGE | 1 | 09/1982 | 51411910997 | $153.56 | Shop at ECS Tuning | |||
| 01 | Armrest front right | PERLBEIGE | 1 | 09/1982 | 51411910998 | $140.62 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | 2 | 51411871376 | $0.47 | ENDED | Shop at ECS Tuning | ||||
| 03 | Nut | 4 | 51411873255 | $0.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,8X45 | 2 | 07119906771 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | ST4,8X38-R-ZNFE | 2 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
