Armrest, rear for BMW 5 Series E28 M535i (1987)

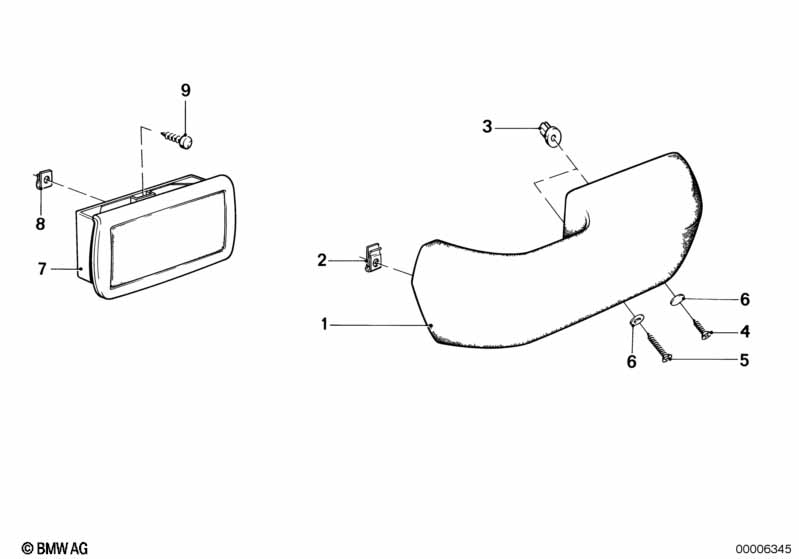

This Armrest, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armrest rear left | SCHWARZ | 1 | 51421885273 | $68.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear right | SCHWARZ | 1 | 51421885274 | $66.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear left | PACIFIC | 1 | 51421885275 | $72.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear right | PACIFIC | 1 | 51421885276 | $72.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear left | PINIENGRUEN | 1 | 51421885281 | $72.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear right | PINIENGRUEN | 1 | 51421885282 | $72.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear left | NUTRIA | 1 | 09/1982 | 51421912655 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear right | NUTRIA | 1 | 09/1982 | 51421912656 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear left | PERLBEIGE | 1 | 09/1982 | 51421912657 | $64.98 | Shop at ECS Tuning | |||
| 01 | Armrest rear right | PERLBEIGE | 1 | 09/1982 | 51421912658 | $72.26 | ENDED | Shop at ECS Tuning | ||
| 01 | Armrest rear left | LAMA | 1 | 09/1984 | 51421932649 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear right | LAMA | 1 | 09/1984 | 51421932650 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear left | CARDINALROT | 1 | 09/1985 | 51421945803 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest rear right | CARDINALROT | 1 | 09/1985 | 51421945804 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | 2 | 51411871376 | $0.47 | ENDED | Shop at ECS Tuning | ||||
| 03 | Nut | 4 | 51411873255 | $0.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,8X38-R-ZNFE | 2 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,8X45 | 2 | 07119906771 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Ashtray rear | ANTHRAZIT | 2 | 51161874349 | $50.97 | ENDED | Shop at ECS Tuning | |||
| 07 | Ashtray rear | NUTRIA | 2 | 09/1984 | 51161929152 | $50.97 | ENDED | Shop at ECS Tuning | ||
| 07 | Ashtray rear | PINIENGRUEN | 2 | 09/1984 | 51161929153 | $33.48 | ENDED | Shop at ECS Tuning | ||
| 08 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning |
