Door lining upper front-door pocket for BMW 5 Series E28 535i (1981)

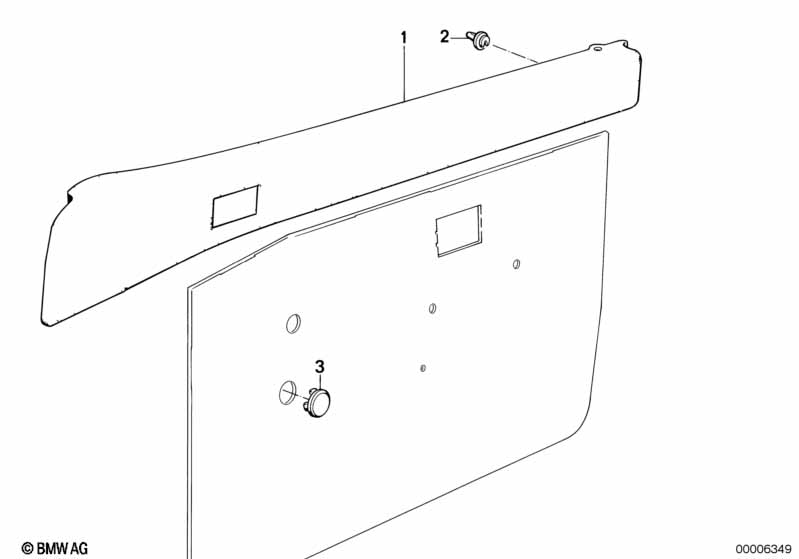

This Door lining upper front-door pocket technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining top front right | ANTHRAZIT | 1 | 51411874242 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door linig top front left | ANTHRAZIT | 1 | 51411875875 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining top front right | NUTRIA | 1 | 51411929118 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining top front right | PINIENGRUEN | 1 | 51411929120 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO EMERGENCY TOOL ELECTR.WINDOW |
||||||||||
| 03 | Cap | TAURUSROT | 2 | 01/1986 | 51411930740 | ENDED | Shop at ECS Tuning | |||
| 03 | Cap | SCHWARZ | 2 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
| 03 | Cap | PACIFIC | 2 | 51411875392 | $10.02 | Shop at ECS Tuning | ||||
| 03 | Cap | PINIENGRUEN | 2 | 51411904066 | $10.02 | ENDED | Shop at ECS Tuning | |||
| 03 | Cap | NUTRIA | 2 | 51411912113 | $7.63 | Shop at ECS Tuning | ||||
| 03 | Cap | PERLBEIGE | 2 | 51411912114 | $6.97 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
