Armrest-single parts for BMW 3 Series E30 325i (1989)

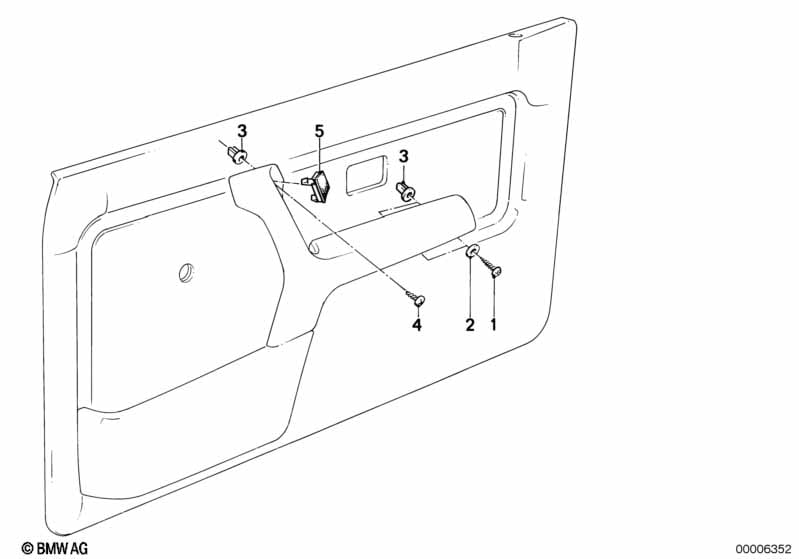

This Armrest-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister head self-tapping screw | ST4,8X45 | 4 | 07119906771 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Nut | 6 | 51411873255 | $0.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw with washer | ST4,8X25 Z2 SW | 2 | 07119907750 | $0.27 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 05 | Cover | SCHWARZ | 1 | 51411903734 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Cover | CARDINALROT | 1 | 51411940339 | $2.18 | Shop at ECS Tuning | ||||
| 05 | Cover | SILBER | 1 | 51411954102 | $3.97 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover | INDIGO | 1 | 51411954103 | $2.18 | Shop at ECS Tuning | ||||
| 05 | Cover | HAVANNA | 1 | 51411954105 | $2.23 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover | NATUR | 1 | 51411954106 | $3.97 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
