Lateral trim panel rear for BMW 3 Series E30 325i (1989)

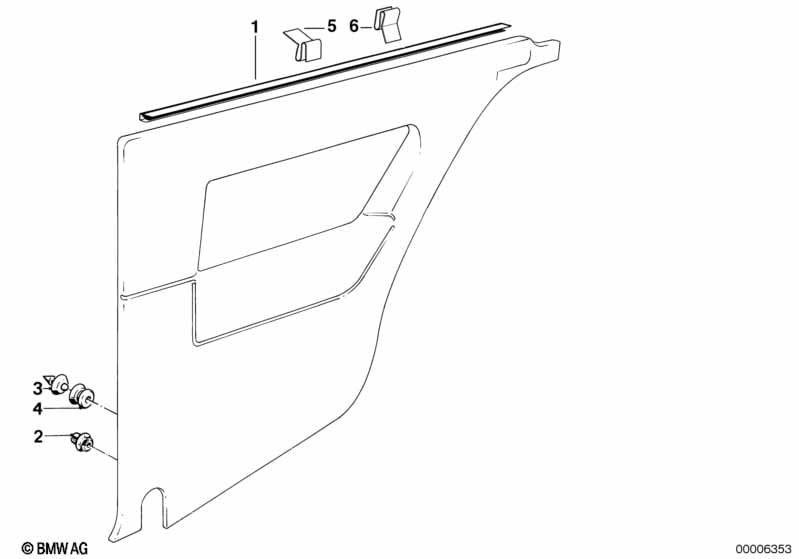

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative strip | CHROM | 2 | 51431922209 | $4.07 | Shop at ECS Tuning | ||||
| 01 | Decorative strip | SCHWARZ | 2 | 51431952018 | $6.49 | Shop at ECS Tuning | ||||
| 03 | Clip lower part | X | 51411922138 | $1.25 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clip upper part | X | 51411922137 | $1.25 | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 51431826929 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clamp | X | 51432231378 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
