Closing system, door, rear for BMW 2 Series F45 Active Tourer 218i (2018)

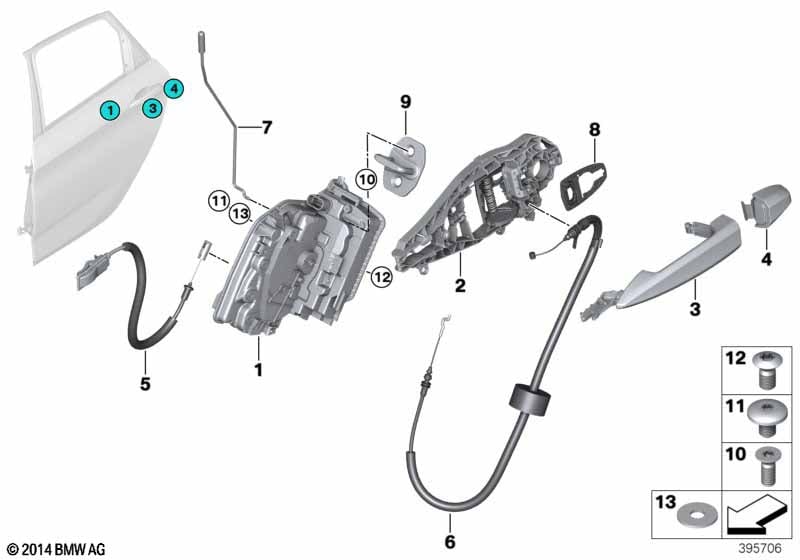

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | System latch, left | 1 | 51227473147 | Shop at ECS Tuning | ||||||
| 01 | System latch, right | 1 | 51227473148 | Shop at ECS Tuning | ||||||
| 02 | Carrier, outside door handle, left | 1 | 51217401209 | Shop at ECS Tuning | ||||||
| 02 | Carrier, outside door handle, right | 1 | 51217401210 | Shop at ECS Tuning | ||||||
| 03 | Door handle, primed, outer left | 1 | 51217396305 | Shop at ECS Tuning | ||||||
| 03 | Door handle, primed, outer right | 1 | 51217396306 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access or Light package |
S322A=Yes S563A=Yes |
|||||||||
| 03 | Door handle, primed, outer left | 1 | 51217396307 | Shop at ECS Tuning | ||||||
| 03 | Door handle, primed, outer right | 1 | 51217396308 | Shop at ECS Tuning | ||||||
| 04 | Covering primend left | 1 | 51217396543 | Shop at ECS Tuning | ||||||
| 04 | Covering primend right | 1 | 51217396544 | Shop at ECS Tuning | ||||||
| 05 | Bowden cable, door opener, inside rear | 2 | 51227296419 | Shop at ECS Tuning | ||||||
| 06 | Bowden cable, outside door handle, rear | 2 | 51227331289 | Shop at ECS Tuning | ||||||
| 07 | Operating rod, door rear left | 1 | 51227296415 | Shop at ECS Tuning | ||||||
| 07 | Operating rod, door rear right | 1 | 51227296416 | Shop at ECS Tuning | ||||||
| 08 | Support for protective cap | 2 | 51217305015 | Shop at ECS Tuning | ||||||
| 09 | Catch bracket | 2 | 51217394435 | Shop at ECS Tuning | ||||||
| 10 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 11 | Torx-bolt with washer | ISA M8X12 | 6 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 12 | Countersunk head screw, Torx | M6X11,5-10.9 | 6 | 07147291342 | Shop at ECS Tuning | |||||
| 13 | Washer | 10-200HV-ZNNIV | 2 | 07119907114 | Shop at ECS Tuning | |||||
