Door trim panel, front for BMW 3 Series E30 325i (1989)

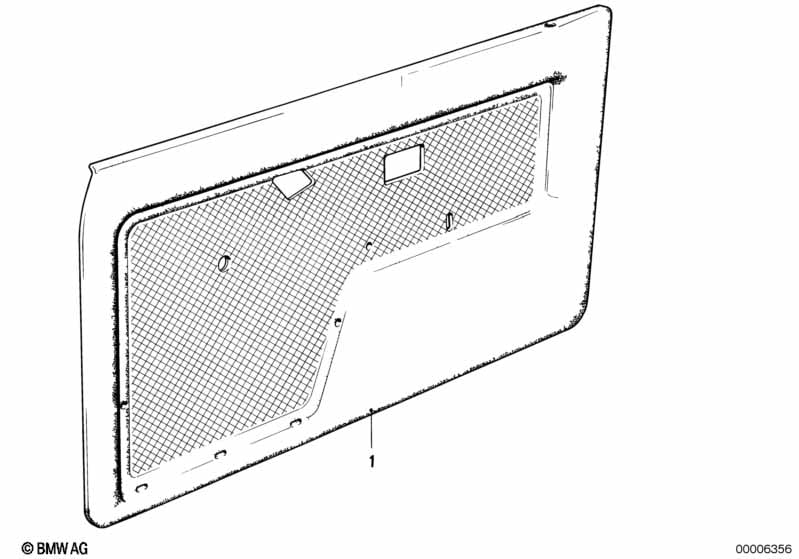

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining cloth left | 0269/0373ANTHR. | 1 | 51411976077 | $183.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | 0269/0373ANTHR. | 1 | 51411976078 | $183.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth left | 0270/0374SILBER | 1 | 51411976083 | $188.56 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | 0270/0374SILBER | 1 | 51411976084 | $183.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth left | 0271/0375INDIGO | 1 | 51411976085 | $162.94 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | 0271/0375INDIGO | 1 | 51411976086 | $162.94 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth left | 0269/373 ANTHR. | 1 | 51418106619 | $183.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | 0269/373 ANTHR. | 1 | 51418106620 | $183.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth left | 0270/374 SILBER | 1 | 51418106625 | $631.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | 0270/374 SILBER | 1 | 51418106626 | $183.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth left | 0271/375 INDIGO | 1 | 51418106627 | $194.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, cloth, right | 0271/375 INDIGO | 1 | 51418106628 | $194.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth left | 0269/373 ANTHR. | 1 | 09/1987 | 51418106619 | $183.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, cloth, right | 0269/373 ANTHR. | 1 | 09/1987 | 51418106620 | $183.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth left | 0273 NATUR | 1 | 09/1987 | 51418106621 | $194.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, cloth, right | 0273 NATUR | 1 | 09/1987 | 51418106622 | $194.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth left | 0272 HAVANNA | 1 | 09/1987 | 51418106623 | $194.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, cloth, right | 0272 HAVANNA | 1 | 09/1987 | 51418106624 | $194.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth left | 0270/374 SILBER | 1 | 09/1987 | 51418106625 | $631.67 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, cloth, right | 0270/374 SILBER | 1 | 09/1987 | 51418106626 | $183.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth left | 0271/375 INDIGO | 1 | 09/1987 | 51418106627 | $194.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, cloth, right | 0271/375 INDIGO | 1 | 09/1987 | 51418106628 | $194.18 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Vinyl version or Leather trim |
=Yes =Yes |
|||||||||
| 01 | Door lining vynil left | SCHWARZ | 1 | 51411965269 | $707.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil right | SCHWARZ | 1 | 51411965270 | $725.06 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil left | 0256/296CAR.ROT | 1 | 01/1986 | 51411965293 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil right | 0256/296CAR.ROT | 1 | 01/1986 | 51411965294 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil left | NATUR | 1 | 09/1987 | 51411976157 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil right | NATUR | 1 | 09/1987 | 51411976158 | $725.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil left | SILBER | 1 | 09/1987 | 51411976161 | $725.06 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil right | SILBER | 1 | 09/1987 | 51411976162 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil left | INDIGO | 1 | 09/1987 | 51411976163 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining vynil right | INDIGO | 1 | 09/1987 | 51411976164 | $588.69 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Door lining cloth left (Part #51411976077).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Door lining cloth left (51411976077) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Door lining cloth left by locating its position on the schematic, which then links to the official BMW part number 51411976077 for the Vehicle trim section.
