Armrest-single parts for BMW 7 Series E23 733i (1984)

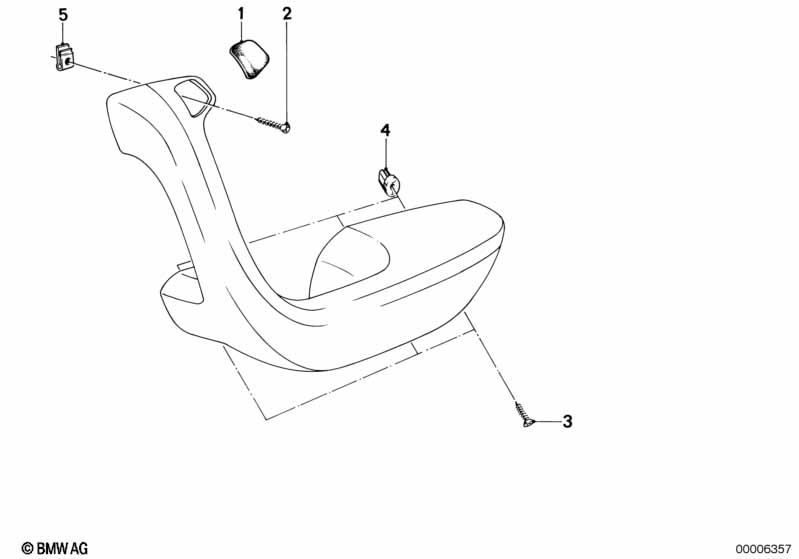

This Armrest-single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Cover | SCHWARZ | 1 | 09/1982 | 51411903734 | $1.62 | Shop at ECS Tuning | |||
| 01 | Cover | PACIFIC | 1 | 09/1982 | 51411903735 | $4.01 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover | NUTRIA | 1 | 09/1982 | 51411903736 | $3.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover | PERLBEIGE | 1 | 09/1982 | 51411903737 | $2.37 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover | PINIENGRUEN | 1 | 09/1982 | 51411903738 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 09/1982 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | ||
| 03 | Sheet metal screw | ST4,8X38-R-ZNFE | 2 | 09/1982 | 07119905199 | $0.36 | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,8X45 | 4 | 09/1982 | 07119906771 | $0.18 | Shop at ECS Tuning | |||
| 04 | Expanding nut | 6 | 09/1982 | 51411801262 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 05 | Plug-in nut | M5 | 2 | 09/1982 | 46637651465 | $1.29 | Shop at ECS Tuning | |||
