Door lining single parts for BMW 3 Series E30 320i (1990)

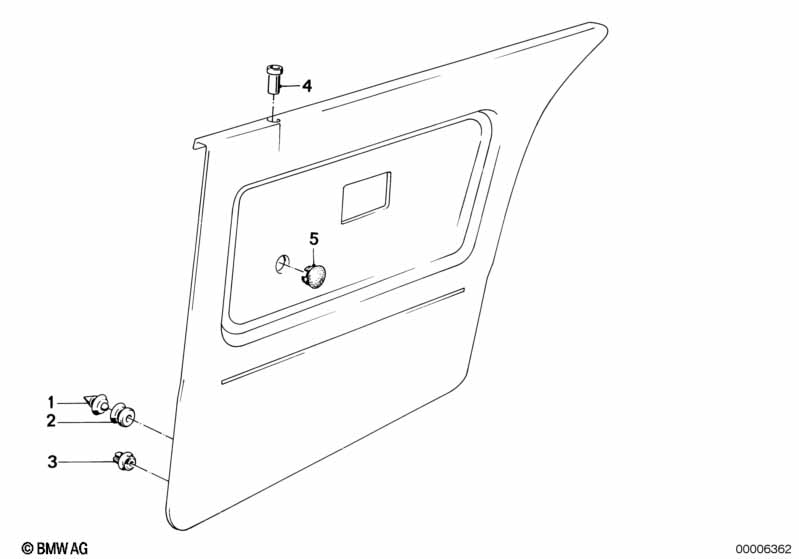

This Door lining single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clip lower part | X | 51411922138 | $1.25 | Shop at ECS Tuning | |||||
| 02 | Clip upper part | X | 51411922137 | $1.25 | Shop at ECS Tuning | |||||
| 03 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 04 | Bush | D=11MM | 2 | 51411911964 | $0.39 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO EMERGENCY TOOL ELECTR.WINDOW |
||||||||||
| 05 | Cap | SCHWARZ | 2 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
| 05 | Cap | SILBER | 2 | 09/1987 | 51411967923 | $5.44 | Shop at ECS Tuning | |||
| 05 | Cap | INDIGO | 2 | 09/1987 | 51411967924 | $5.44 | Shop at ECS Tuning | |||
| 05 | Cap | HAVANNA | 2 | 09/1987 | 51411967925 | $6.27 | ENDED | Shop at ECS Tuning | ||
| 05 | Cap | NATUR | 2 | 09/1987 | 51411967927 | $6.37 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
