Cover, entrance for BMW 3 Series E21 320 (1979)

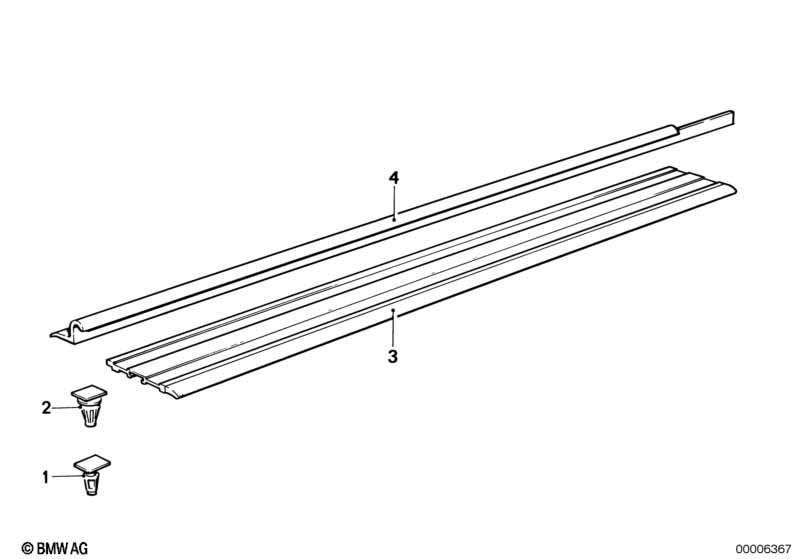

This Cover, entrance technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clip Natur | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 02 | Clamp | X | 51471840961 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Cover strip, front | 2 | 51471828237 | $10.75 | Shop at ECS Tuning | |||||
| 04 | Sill strip left | 1 | 51471827289 | $58.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sill strip right | 1 | 51471827290 | $58.58 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Cover, entrance?
- This technical diagram illustrates the Cover, entrance within the Vehicle trim group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Clip Natur (Part #51471840960).
- Which models use the hardware listed in this Cover, entrance?
- The hardware and components featured in the Cover, entrance are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Clip Natur (51471840960) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover, entrance assembly?
- Each item in the Cover, entrance corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Clip Natur by locating its position on the schematic, which then links to the official BMW part number 51471840960 for the Vehicle trim section.
