Windshield frame cover for BMW 7 Series E23 732i (1982)

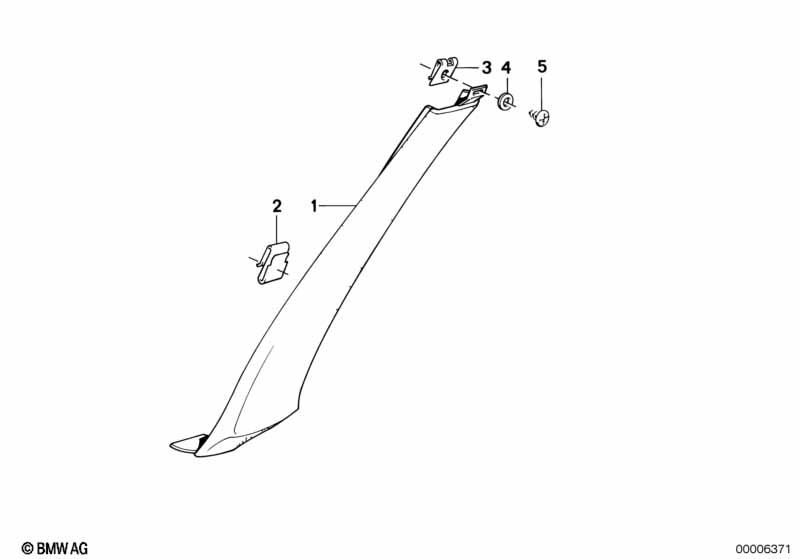

This Windshield frame cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering apron left | ANTHRAZIT | 1 | 51431853603 | $233.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering apron right | ANTHRAZIT | 1 | 51431853604 | $233.02 | Shop at ECS Tuning | ||||
| 02 | Clamp | 4 | 51431852731 | $0.52 | ENDED | Shop at ECS Tuning | ||||
| 03 | Body nut | ST3,5-1-ZNS | 2 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST3,5X13 | 2 | 07119906720 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Windshield frame cover?
- This technical diagram illustrates the Windshield frame cover within the Vehicle trim group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Covering apron left (Part #51431853603).
- Which models use the hardware listed in this Windshield frame cover?
- The hardware and components featured in the Windshield frame cover are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the Covering apron left (51431853603) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Windshield frame cover assembly?
- Each item in the Windshield frame cover corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the Covering apron left by locating its position on the schematic, which then links to the official BMW part number 51431853603 for the Vehicle trim section.
