Trim panel door frame rear for BMW 7 Series E23 733i (1985)

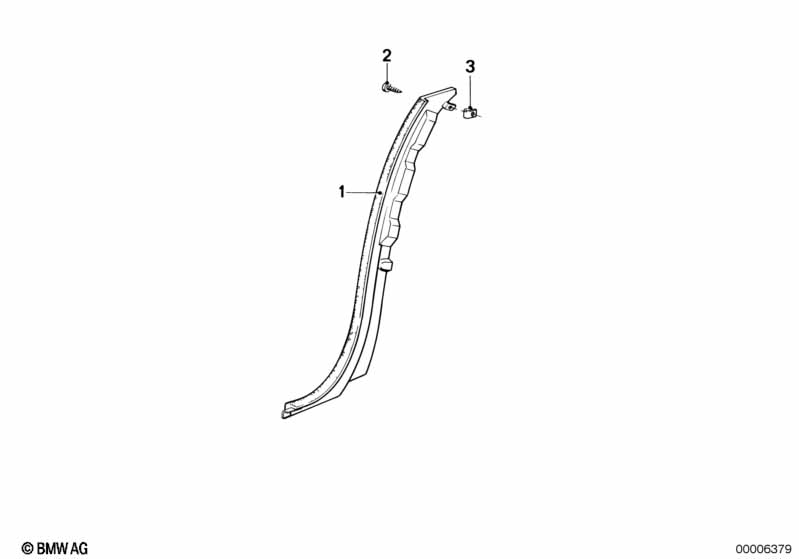

This Trim panel door frame rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering door frame bottom rear left | ANTHRAZIT | 1 | 51431853751 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering door frame bottom rear right | ANTHRAZIT | 1 | 51431853752 | $58.59 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering door frame bottom rear left | NUTRIA | 1 | 51431921963 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering door frame bottom rear right | NUTRIA | 1 | 51431921964 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering door frame bottom rear left | PINIENGRUEN | 1 | 51431931277 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering door frame bottom rear right | PINIENGRUEN | 1 | 51431931278 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST3,5X13 | 4 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST3,5-1-ZNS | 4 | 07129901634 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
