Cover loudspeaker door entrance for BMW 7 Series E23 733i (1979)

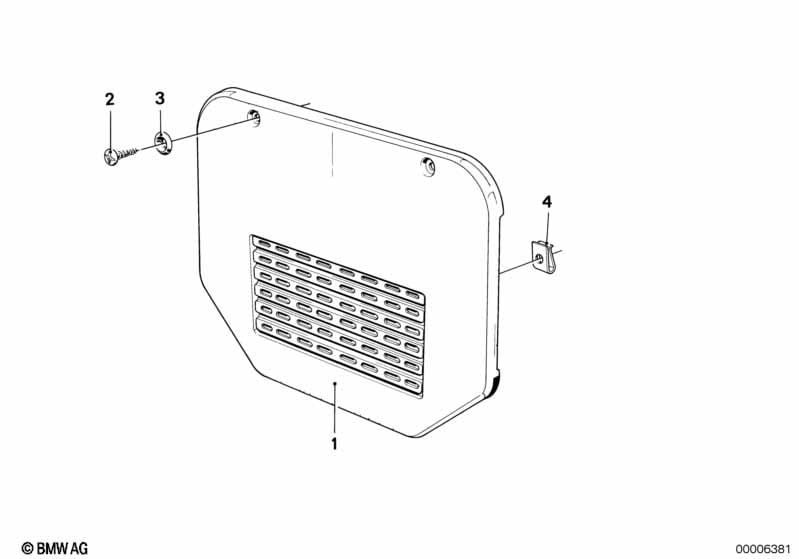

This Cover loudspeaker door entrance technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover Loudspeaker | NYLONBRAUN | 2 | 09/1979 | 51431853711 | $39.34 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover Loudspeaker | ANTHRAZIT | 2 | 09/1979 | 51431853715 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover Loudspeaker | FARNGRUEN | 2 | 09/1979 | 51431853717 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 02 | Recessed oval head sheet-metal screw | ST2,9X13 | 4 | 09/1979 | 07119902412 | $1.30 | Shop at ECS Tuning | |||
| 03 | Hollow washer | 4 | 09/1979 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Body nut | ST2,9-1 | 4 | 09/1979 | 07129901631 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Cover loudspeaker door entrance?
- This technical diagram illustrates the Cover loudspeaker door entrance within the Vehicle trim group for the 7 Series E23 733i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Cover Loudspeaker (Part #51431853711).
- Which models use the hardware listed in this Cover loudspeaker door entrance?
- The hardware and components featured in the Cover loudspeaker door entrance are specific to the 7 Series E23 733i produced during 1979. These technical specifications ensure that parts like the Cover Loudspeaker (51431853711) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover loudspeaker door entrance assembly?
- Each item in the Cover loudspeaker door entrance corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Cover Loudspeaker by locating its position on the schematic, which then links to the official BMW part number 51431853711 for the Vehicle trim section.
