Cover door sill / wheel arch for BMW 2 Series F45 Active Tourer LCI 218d (2020)

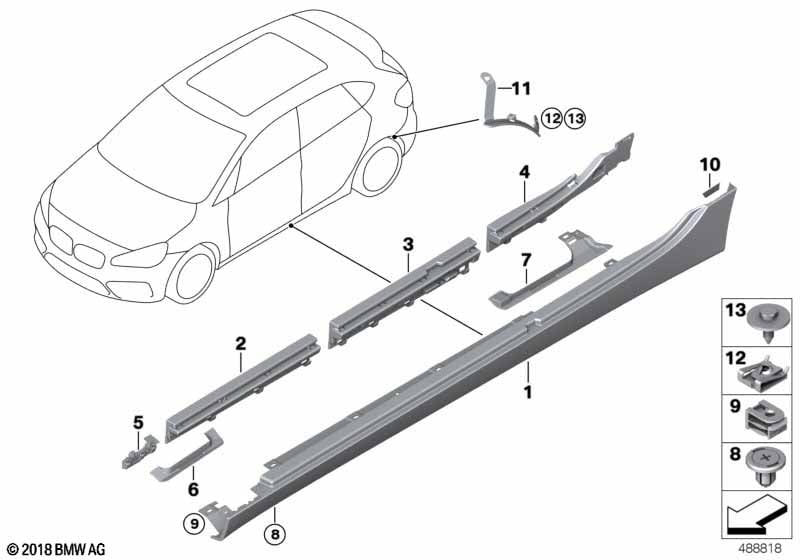

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Rocker panel trim, primed, left | 1 | 51777393793 | Shop at ECS Tuning | ||||||
| 01 | Rocker panel trim, primed, right | 1 | 51777393794 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Rocker panel trim, primed, left | - M - | 1 | 51778063351 | Shop at ECS Tuning | |||||
| 01 | Rocker panel trim, primed, right | - M - | 1 | 51778063352 | Shop at ECS Tuning | |||||
| 02 | Mount strip, rocker panel, fr. left | 1 | 51777301939 | Shop at ECS Tuning | ||||||
| 02 | Mount strip, rocker panel, fr. right | 1 | 51777301940 | Shop at ECS Tuning | ||||||
| 03 | Mount rail, rocker panel, cntr rear left | 1 | 51777301941 | Shop at ECS Tuning | ||||||
| 03 | Mount rail, rocker panel cntr rear right | 1 | 51777301942 | Shop at ECS Tuning | ||||||
| 04 | Mount strip, rocker panel, rear left | 1 | 51777301943 | Shop at ECS Tuning | ||||||
| 04 | Mount strip, rocker panel, rear right | 1 | 51777301944 | Shop at ECS Tuning | ||||||
| 05 | Support, sill, left | 1 | 51127327319 | Shop at ECS Tuning | ||||||
| 05 | Support, sill, right | 1 | 51127327320 | Shop at ECS Tuning | ||||||
| 06 | Cover, opening, front left | 1 | 51777338265 | Shop at ECS Tuning | ||||||
| 06 | Cover, opening, front right | 1 | 51777338266 | Shop at ECS Tuning | ||||||
| 07 | Cover, opening, rear left | 1 | 51777338267 | Shop at ECS Tuning | ||||||
| 07 | Cover, opening, rear right | 1 | 51777338268 | Shop at ECS Tuning | ||||||
| 08 | Expanding rivet | 14 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 09 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 10 | Abrasion guard wrap, side frame, left | 1 | 51777441817 | Shop at ECS Tuning | ||||||
| 10 | Abrasion guard wrap, side frame, right | 1 | 51777441818 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version Australia |
L807A=Yes L810A=Yes |
|||||||||
| 11 | Wheel arch trim, rear left | 1 | 51777479809 | Shop at ECS Tuning | ||||||
| 11 | Wheel arch trim, rear right | 1 | 51777479810 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version Australia |
L807A=Yes L810A=No |
|||||||||
| 11 | Wheel arch trim, rear left | 1 | 51777479809 | Shop at ECS Tuning | ||||||
| 11 | Wheel arch trim, rear right | 1 | 51777479810 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version Australia |
L807A=No L810A=Yes |
|||||||||
| 11 | Wheel arch trim, rear left | 1 | 51777479809 | Shop at ECS Tuning | ||||||
| 11 | Wheel arch trim, rear right | 1 | 51777479810 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version Australia |
L807A=Yes L810A=Yes |
|||||||||
| 12 | C-clip nut, self-locking | TS5 | 2 | 07147330002 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version Australia |
L807A=Yes L810A=No |
|||||||||
| 12 | C-clip nut, self-locking | TS5 | 2 | 07147330002 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version Australia |
L807A=No L810A=Yes |
|||||||||
| 12 | C-clip nut, self-locking | TS5 | 2 | 07147330002 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version Australia |
L807A=Yes L810A=Yes |
|||||||||
| 13 | Hex bolt | TS5X17 SW8 D=22 | 2 | 07149126886 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version Australia |
L807A=Yes L810A=No |
|||||||||
| 13 | Hex bolt | TS5X17 SW8 D=22 | 2 | 07149126886 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version Australia |
L807A=No L810A=Yes |
|||||||||
| 13 | Hex bolt | TS5X17 SW8 D=22 | 2 | 07149126886 | Shop at ECS Tuning | |||||
