Door lining single parts for BMW 7 Series E32 730iL (1994)

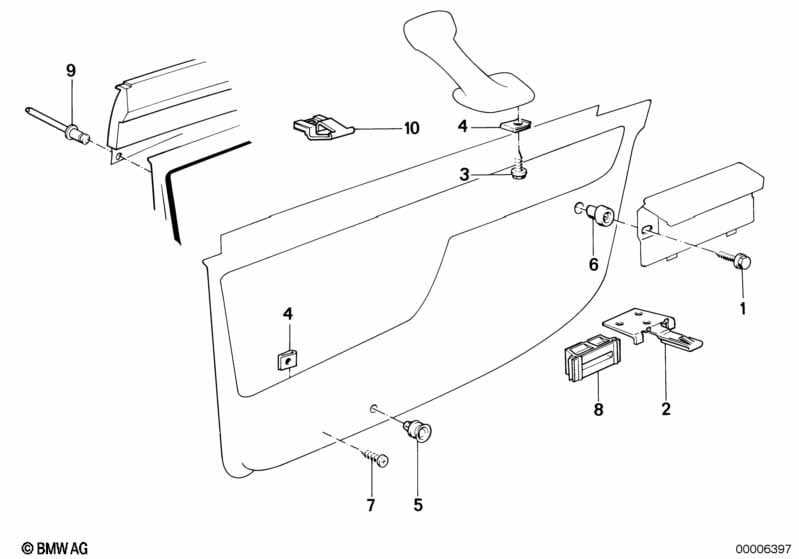

This Door lining single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex head screw | ST4,8X22-C-Z2 | 4 | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Clamp | 2 | 51411949499 | $1.69 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X13-C-U1-Z | 8 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 05 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 05 | Clip | GRUN | X | 51418101204 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Nut | 2 | 51411908891 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Sheet metal screw | ST3,5X13 SW | 2 | 07119904309 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Clamp | 2 | 51411949498 | $0.95 | Shop at ECS Tuning | |||||
| 09 | Rivet | 4-2A | 8 | 07129948752 | $0.19 | Shop at ECS Tuning | ||||
| 10 | Clamp | X | 51411908855 | $0.61 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730iL Door lining single parts?
- This technical diagram illustrates the Door lining single parts within the Vehicle trim group for the 7 Series E32 730iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Hex head screw (Part #07119916944).
- Which models use the hardware listed in this Door lining single parts?
- The hardware and components featured in the Door lining single parts are specific to the 7 Series E32 730iL produced during 1994. These technical specifications ensure that parts like the Hex head screw (07119916944) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door lining single parts assembly?
- Each item in the Door lining single parts corresponds to the numbered list below the illustration. For the 7 Series E32 730iL, you can identify the Hex head screw by locating its position on the schematic, which then links to the official BMW part number 07119916944 for the Vehicle trim section.
