Roller sun vizor, rear door for BMW 7 Series E32 730iL (1994)

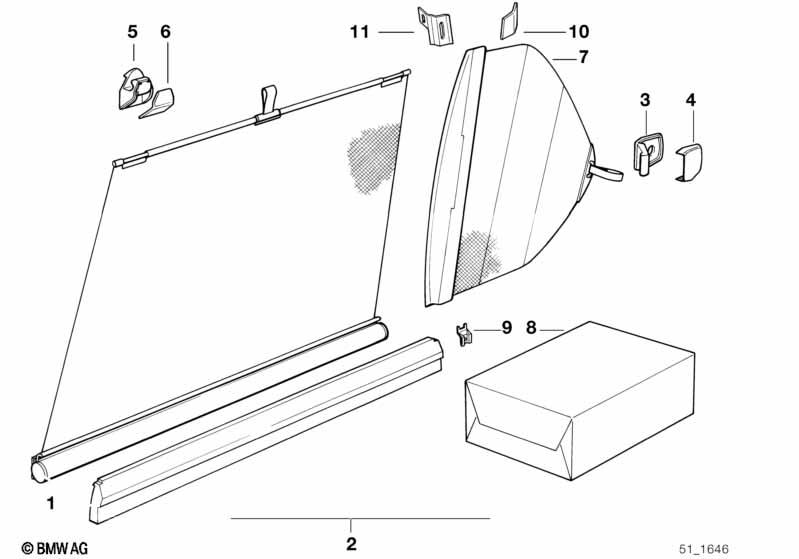

This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining top rear left | SCHWARZ | 1 | 51428101217 | $275.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear right | SCHWARZ | 1 | 51428101218 | $275.35 | Shop at ECS Tuning | ||||
| 01 | Door lining top rear left | SILBERGRAU | 1 | 09/1990 | 51428139149 | $275.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | SILBERGRAU | 1 | 09/1990 | 51428139150 | $275.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear left | ULTRAMARIN | 1 | 09/1990 | 51428139151 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | ULTRAMARIN | 1 | 09/1990 | 51428139152 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear left | PERGAMENT | 1 | 09/1990 | 51428139153 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | PERGAMENT | 1 | 09/1990 | 51428139154 | $283.57 | ENDED | Shop at ECS Tuning | ||
| 02 | Installing set sun blind rear door | SILBERGRAU DKL. | 1 | 09/1990 | 51169059422 | ENDED | Shop at ECS Tuning | |||
| 02 | Installing set sun blind rear door | ULTRAMARIN | 1 | 09/1990 | 51169059423 | ENDED | Shop at ECS Tuning | |||
| 02 | Installing set sun blind rear door | PERGAMENT DKL. | 1 | 09/1990 | 51169059424 | ENDED | Shop at ECS Tuning | |||
| 03 | Hook | SCHWARZ | 2 | 51161964316 | $1.68 | Shop at ECS Tuning | ||||
| 04 | Cover | SCHWARZ | 2 | 51161964319 | $1.33 | ENDED | Shop at ECS Tuning | |||
| 05 | Hook | SCHWARZ | 4 | 51161964310 | $3.08 | Shop at ECS Tuning | ||||
| 06 | Cover | SCHWARZ | 4 | 51161964313 | $0.66 | ENDED | Shop at ECS Tuning | |||
| 07 | Left rear door sun blind | SCHWARZ | 1 | 51161964323 | $145.75 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door sun blind | SCHWARZ | 1 | 51161964324 | $145.75 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Insulation glass |
=Yes |
|||||||||
| 07 | Left rear door sun blind | SCHWARZ | 1 | 51161964323 | $145.75 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door sun blind | SCHWARZ | 1 | 51161964324 | $145.75 | ENDED | Shop at ECS Tuning | |||
| 08 | Mounting parts set | 1 | 51189061337 | $83.42 | ENDED | Shop at ECS Tuning | ||||
| 09 | Support | 2 | 51421969335 | $1.68 | Shop at ECS Tuning | |||||
| 10 | Covering left | SCHWARZ | 1 | 51168114311 | $0.96 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering right | SCHWARZ | 1 | 51168114312 | $0.96 | Shop at ECS Tuning | ||||
| 10 | Covering left | INDIGO DKL. | 1 | 51168114313 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering right | INDIGO DKL. | 1 | 51168114314 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering left | HAVANNA | 1 | 51168114315 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering right | HAVANNA | 1 | 51168114316 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 11 | Support left | 1 | 51161969893 | $2.38 | Shop at ECS Tuning | |||||
| 11 | Support right | 1 | 51161969894 | $2.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
