Door lining single parts for BMW 8 Series E31 850CSi (1996)

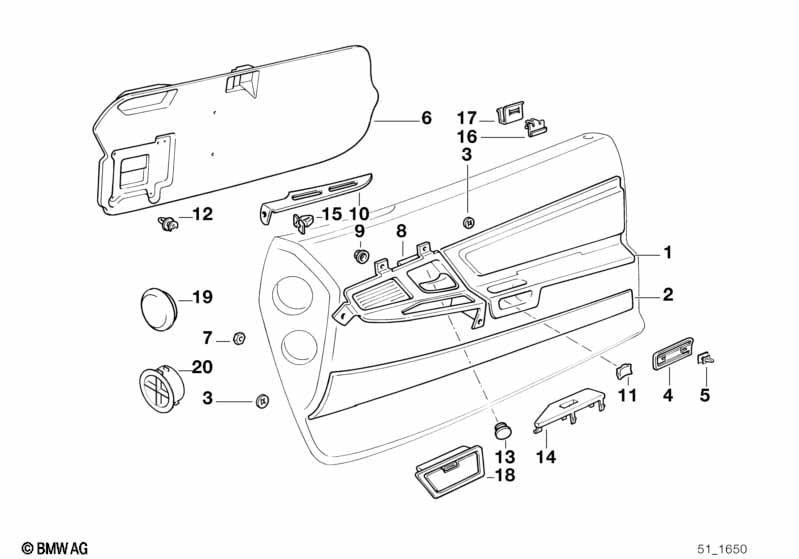

This Door lining single parts technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 01 | Door panel, leather, front left | 0499 ANTHRAZIT | 1 | 51412254069 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | 0499 ANTHRAZIT | 1 | 51412254070 | $517.82 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Leather trim Walknappa |
=Yes =Yes |
|||||||||
| 01 | Door panel, leather, front left | SCHWARZ | 1 | 51412254061 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | SCHWARZ | 1 | 51412254062 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | SILBERGRAU DKL. | 1 | 51412254063 | $671.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | SILBERGRAU DKL. | 1 | 51412254064 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | SILBERGRAU HELL | 1 | 51412254065 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | SILBERGRAU HELL | 1 | 51412254066 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | LOTOSWEISS | 1 | 51412254067 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | LOTOSWEISS | 1 | 51412254068 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | BARBADOSGRUEN | 1 | 51412256795 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | BARBADOSGRUEN | 1 | 51412256796 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | TOBAGOBLAU | 1 | 51412256797 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | TOBAGOBLAU | 1 | 51412256798 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door panel, leather, front left | CALYPSOROT | 1 | 51412256799 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | CALYPSOROT | 1 | 51412256800 | $517.82 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | 0346/525SCHWARZ | 1 | 09/1992 | 51418161848 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | 0347/351 SILB.G | 1 | 09/1992 | 51418161850 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0353 SILBERGR.H | 1 | 09/1992 | 51418161852 | $517.82 | Shop at ECS Tuning | |||
| 01 | Door lining leather front right | 0348/355 ULTRAM | 1 | 09/1992 | 51418161854 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0349/356 PERGAM | 1 | 09/1992 | 51418161856 | $671.27 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0358 PERGAMENT | 1 | 09/1992 | 51418161858 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0350/360 BRASIL | 1 | 09/1992 | 51418161860 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0361KARMESINROT | 1 | 09/1992 | 51418161862 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | BARBADOSGRUEN | 1 | 09/1992 | 51418161918 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | TOBAGOBLAU | 1 | 09/1992 | 51418161920 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | CALYPSOROT | 1 | 09/1992 | 51418161922 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0352 SILBERGRAU | 1 | 09/1992 | 51418177834 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0354 SILBERGR.H | 1 | 09/1992 | 51418177836 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0357 PERGAMENT | 1 | 09/1992 | 51418177838 | $517.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather front right | 0359 PERGAMENT | 1 | 09/1992 | 51418177840 | $517.82 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 02 | Door trim panel, front left | ANTHRAZIT | 1 | 51418123489 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door trim panel, front right | ANTHRAZIT | 1 | 51418123490 | $304.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51412255469 | $336.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | SCHWARZ | 1 | 51412255470 | $336.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | SILBERGRAU | 1 | 51412255471 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | SILBERGRAU | 1 | 51412255472 | $336.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | PERGAMENT | 1 | 51412255473 | $336.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | PERGAMENT | 1 | 51412255474 | $336.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | ULTRAMARIN | 1 | 51412255475 | $402.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | ULTRAMARIN | 1 | 51412255476 | $402.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | BRASIL | 1 | 51412255477 | ENDED | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | BRASIL | 1 | 51412255478 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim and Leather trim Buffalo |
=Yes =Yes |
|||||||||
| 02 | Door lining leather left | ANTHRAZIT | 1 | 51412255481 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | ANTHRAZIT | 1 | 51412255482 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | BRASIL | 1 | 51412255483 | ENDED | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | BRASIL | 1 | 51412255484 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth version or Leather trim Walknappa |
=Yes =Yes |
|||||||||
| 02 | Door lining leather left | SILBERGRAU HELL | 1 | 51412253997 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | SILBERGRAU HELL | 1 | 51412253998 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | LOTOSWEISS | 1 | 51412254001 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | LOTOSWEISS | 1 | 51412254002 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | SCHWARZ | 1 | 51412254133 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | SCHWARZ | 1 | 51412254134 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | SILBERGRAU DKL. | 1 | 51412254135 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | SILBERGRAU DKL. | 1 | 51412254136 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | TABAGOBLAU | 1 | 51418152721 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | TABAGOBLAU | 1 | 51418152722 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather left | CALYPSOROT | 1 | 51418152723 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Door lining leather right | CALYPSOROT | 1 | 51418152724 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | 5MM | X | 51418108117 | $0.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 04 | Handle left | ANTHRAZIT | 1 | 51418123495 | $51.06 | ENDED | Shop at ECS Tuning | |||
| 04 | Handle right | ANTHRAZIT | 1 | 51418123496 | $54.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Leather trim Walknappa |
=Yes =Yes |
|||||||||
| 04 | Handle left | SCHWARZ | 1 | 09/1992 | 51418152727 | $54.11 | Shop at ECS Tuning | |||
| 04 | Handle right | SCHWARZ | 1 | 09/1992 | 51418152728 | $54.11 | ENDED | Shop at ECS Tuning | ||
| 05 | Clamp | 2 | 51418118969 | $1.35 | Shop at ECS Tuning | |||||
| 06 | Sound insulating door front left | 1 | 51481970257 | $41.20 | Shop at ECS Tuning | |||||
| 06 | Sound insulating door front right | 1 | 51481970258 | $41.20 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 08 | Handle left | CHROM | 1 | 09/1991 | 51418128889 | $108.79 | ENDED | Shop at ECS Tuning | ||
| 08 | Handle right | CHROM | 1 | 09/1991 | 51418128890 | $108.79 | ENDED | Shop at ECS Tuning | ||
| 09 | Body nut | 1 | 51418108815 | $0.39 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering left | 1 | 64221970551 | $17.27 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering right | 1 | 64221970552 | $17.27 | Shop at ECS Tuning | |||||
| 11 | Cap | SILBERGRAU DKL. | 1 | 51412254019 | $2.21 | Shop at ECS Tuning | ||||
| 11 | Cap | SCHWARZ | 1 | 51418123346 | $2.21 | ENDED | Shop at ECS Tuning | |||
| 12 | Clip | GRUN | X | 51418101204 | $0.55 | Shop at ECS Tuning | ||||
| 13 | Blind plug | 2 | 51218108370 | $3.44 | Shop at ECS Tuning | |||||
| 14 | Covering right | 1 | 51211970960 | $5.79 | Shop at ECS Tuning | |||||
| 15 | Expanding nut | X | 51418108818 | $0.39 | Shop at ECS Tuning | |||||
| 16 | Clamp | X | 51211970530 | $1.69 | Shop at ECS Tuning | |||||
| 17 | Clamp | X | 51418108770 | $1.35 | Shop at ECS Tuning | |||||
| 18 | Cointray left | SCHWARZ | 1 | 51418128463 | $70.48 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | SILBERGR.DUNKEL | 1 | 51418128465 | $70.48 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | PERGAMEN.DUNKEL | 1 | 51418128469 | $70.48 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | BRASIL | 1 | 51418128471 | $70.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 18 | Cointray left | SCHWARZ | 1 | 51418128464 | $41.85 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | SILBERGR.DUNKEL | 1 | 51418128466 | $70.48 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | ULTRAMARIN | 1 | 51418128468 | $41.38 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | PERGAMEN.DUNKEL | 1 | 51418128470 | $70.48 | ENDED | Shop at ECS Tuning | |||
| 18 | Cointray left | BRASIL | 1 | 51418128472 | $65.84 | ENDED | Shop at ECS Tuning | |||
| 19 | Plug | D=14MM | 2 | 51411970739 | $3.71 | ENDED | Shop at ECS Tuning | |||
| 20 | End piece | D=62MM | 2 | 64221970946 | $9.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
