Roof trim-covering headlining front for BMW 5 Series E12 528i (1981)

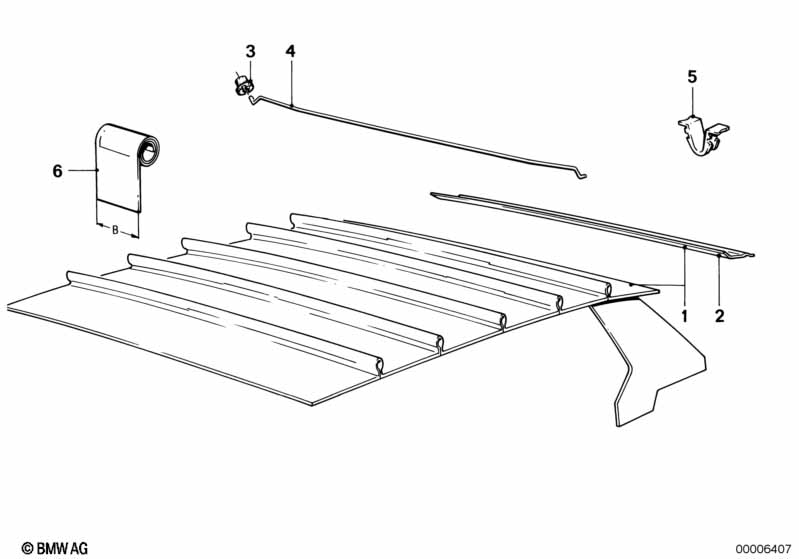

This Roof trim-covering headlining front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlining | 1 | 51441836649 | $162.94 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 01 | Headlining | 1 | 08/1976 | 51441857956 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sliding lifting roof manual |
=Yes |
|||||||||
| 01 | Headlining | 1 | 08/1976 | 51441857955 | $149.51 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 51441836683 | $27.90 | ENDED | Shop at ECS Tuning | ||||
| 03 | Grommet | X | 51441815634 | $1.37 | Shop at ECS Tuning | |||||
| 04 | Wire-strap | 5 | 51441815633 | $4.97 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 04 | Wire-strap sliding lifting roof | 1 | 08/1976 | 51441848080 | ENDED | Shop at ECS Tuning | ||||
| 05 | Clamp | 6 | 51441802141 | $3.34 | Shop at ECS Tuning | |||||
| 06 | Headlining | B=1350MM | X | 51951817302 | $48.76 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
